Chapter 4. Firmware Upgrade
25
Upgrade Succeeded:

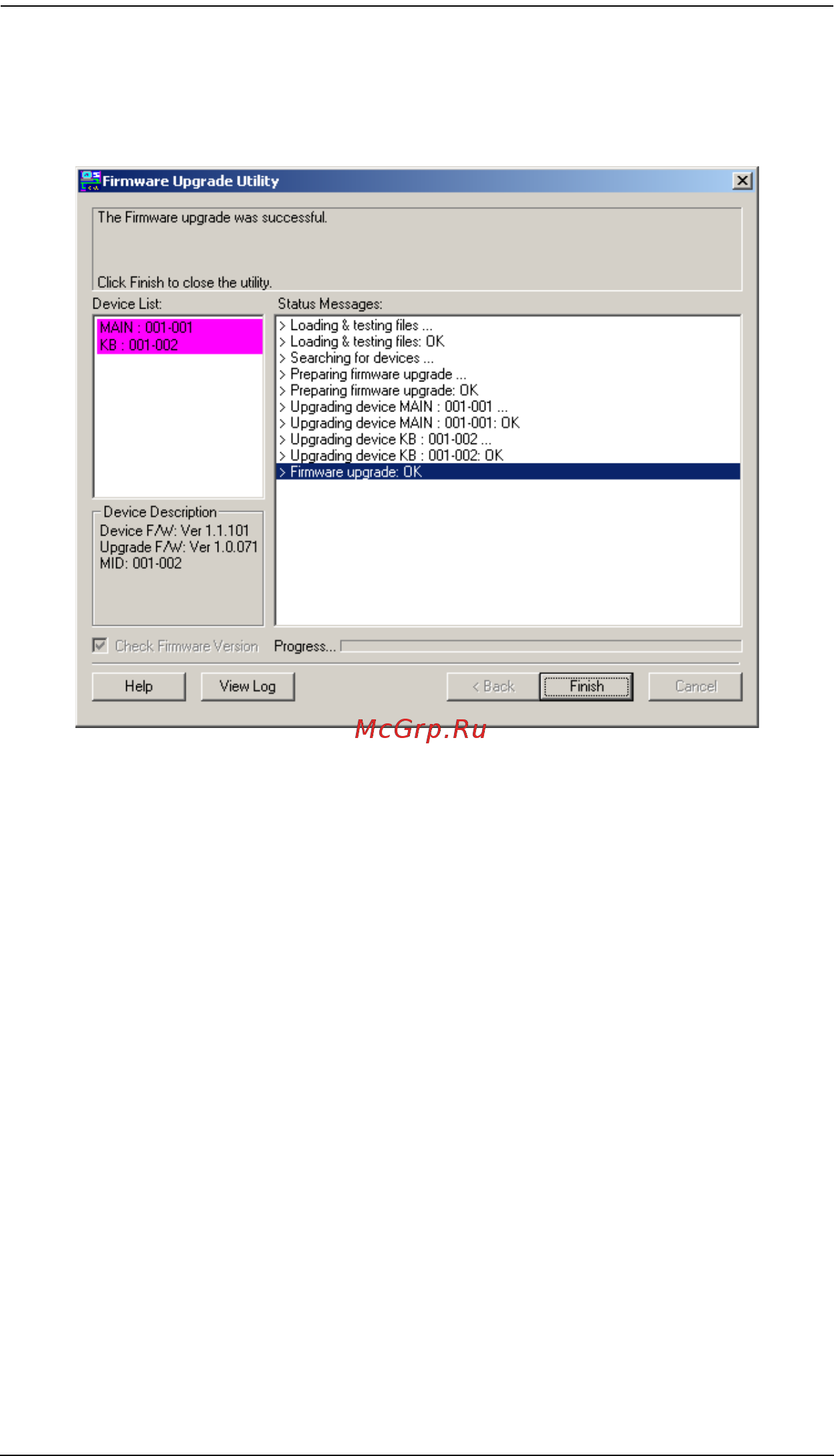

After the upgrade has completed, a screen appears to inform you that the
procedure was successful:
Click Finish to close the Firmware Upgrade Utility.
