Appendix
37

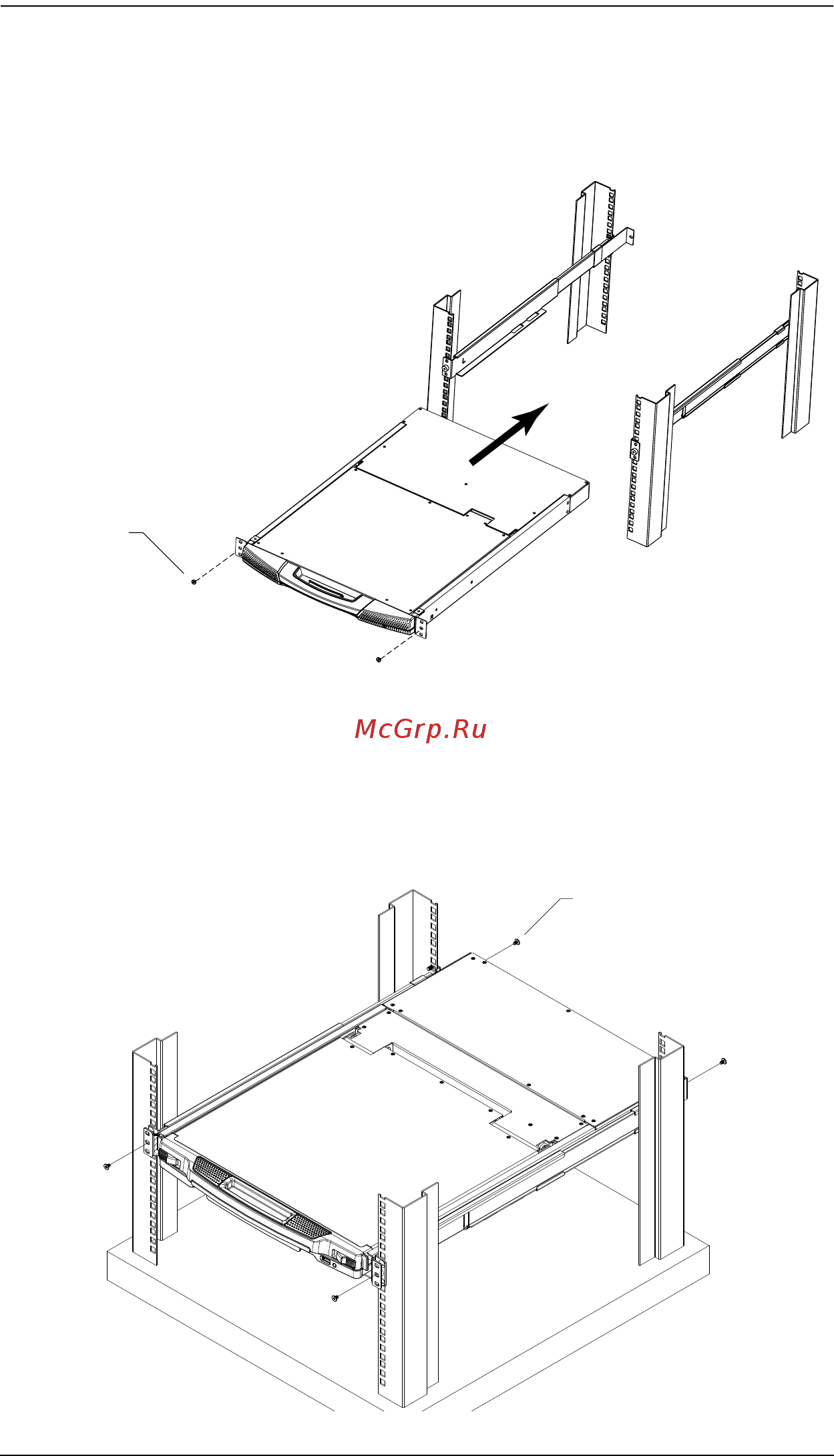

3. Slide the CL6700MW onto the support flanges. Use the screws supplied
with this package to loosely attach the front of the CL6700MW to the front
of the rack (only tighten the screws part way).
4. Slide the rear attachment sliding brackets along the slide bars until they
contact the rear of the CL6700MW, then use the screws supplied with this
package to attach the bars to the rear of the CL6700MW (tighten the
screws all the way).
Phillips I head
M4L6
Phillips I head
M4L6
