- 8 -

Components

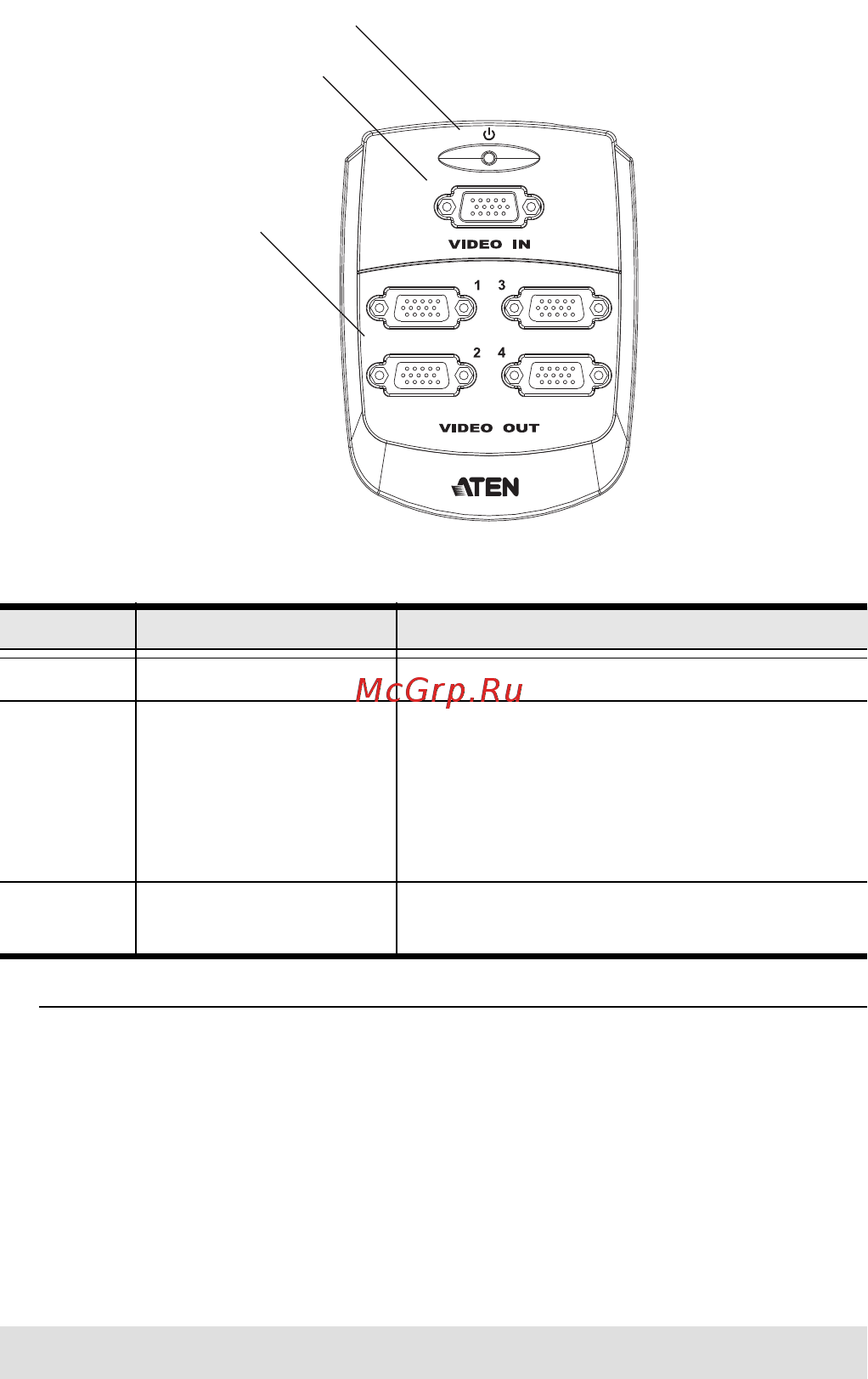

Top View

Note: 1. If you connect a DDC type monitor to Video Out Port

1, all other monitors must be able to support the

highest resolution that the DDC monitor can provide.

2. The diagrams in this manual are for a VS-84. The

VS-82 and VS-88 have two and eight ports

respectively, instead of the four Video Out ports

shown.

No. Component Description

1 Power Switch This powers the unit on and off.

2 Video In Port

 If this is a First Stage unit, the cable

from the PC video port plugs in here

 If this is a cascaded unit, the cable from

the Video Out port of the higher stage

unit plugs in here

3 Video Out Ports The cables to the monitors can plug into

any available port.
