VC010 / VC060 / VC080 User Manual

Components

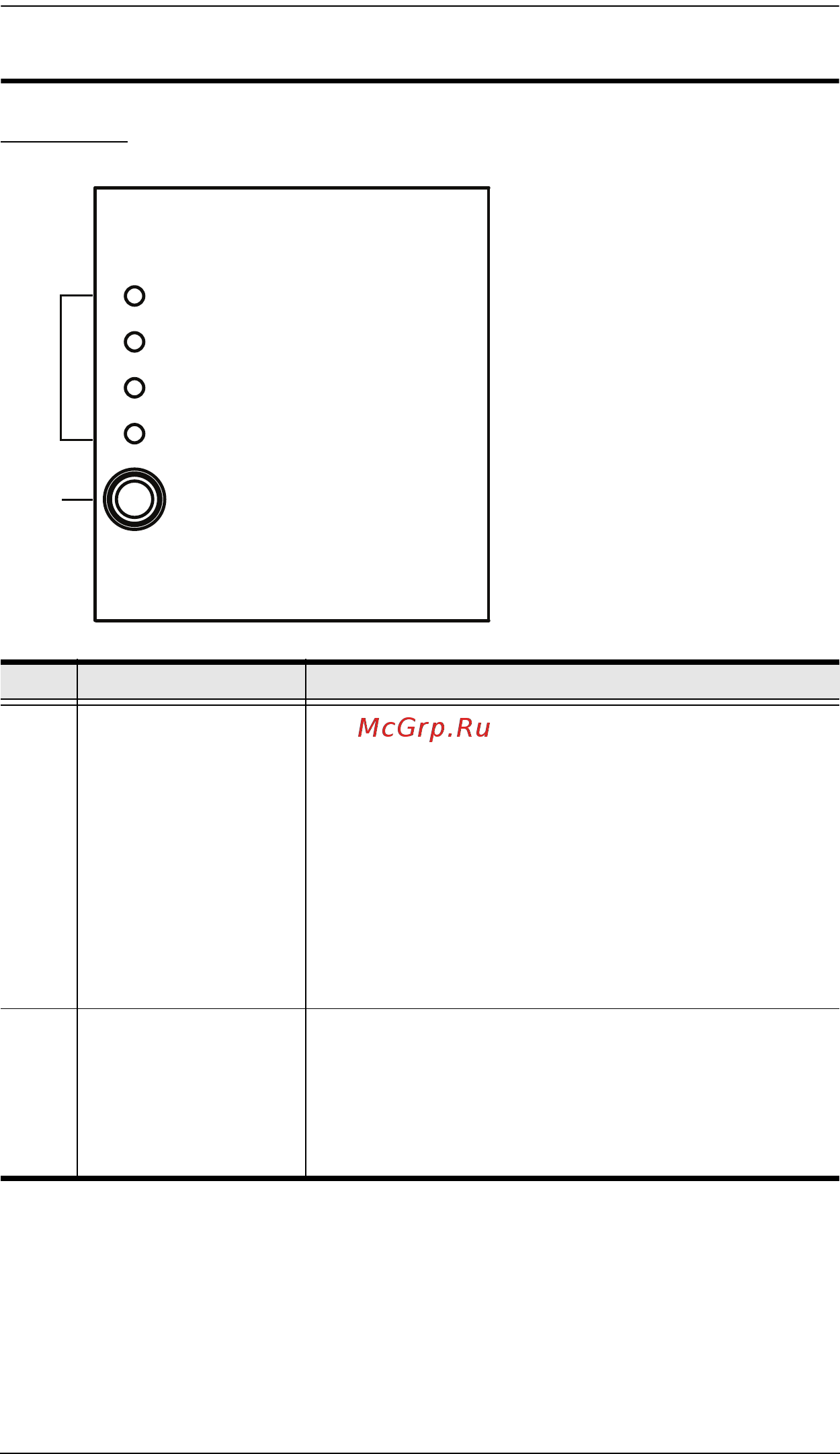

Top View

No. Component Description

1 EDID Set LEDs The LEDs indicate the active EDID configuration of the

unit.

 LED 1 - the EDID is set to the ATEN default configu-

ration

 LED 2 ~ 4 - the EDID is customized; the EDID set-

tings can be configured using the EDID Learn Push-

button or via the EDID Wizard and stored for later

use (as 2, 3 or 4).

See EDID Wizard, page 10 for steps on how to

configure the EDID settings via the EDID Wizard.

2 Learn/Select

Pushbutton

Press this button to cycle through the EDID settings

stored in the unit. See EDID Panel Selection, page 9

for details.

You can also use this pushbutton to automatically

store the active display’s EDID for later use. See EDID

Learn Pushbutton, page 9 for steps on how to do this.
