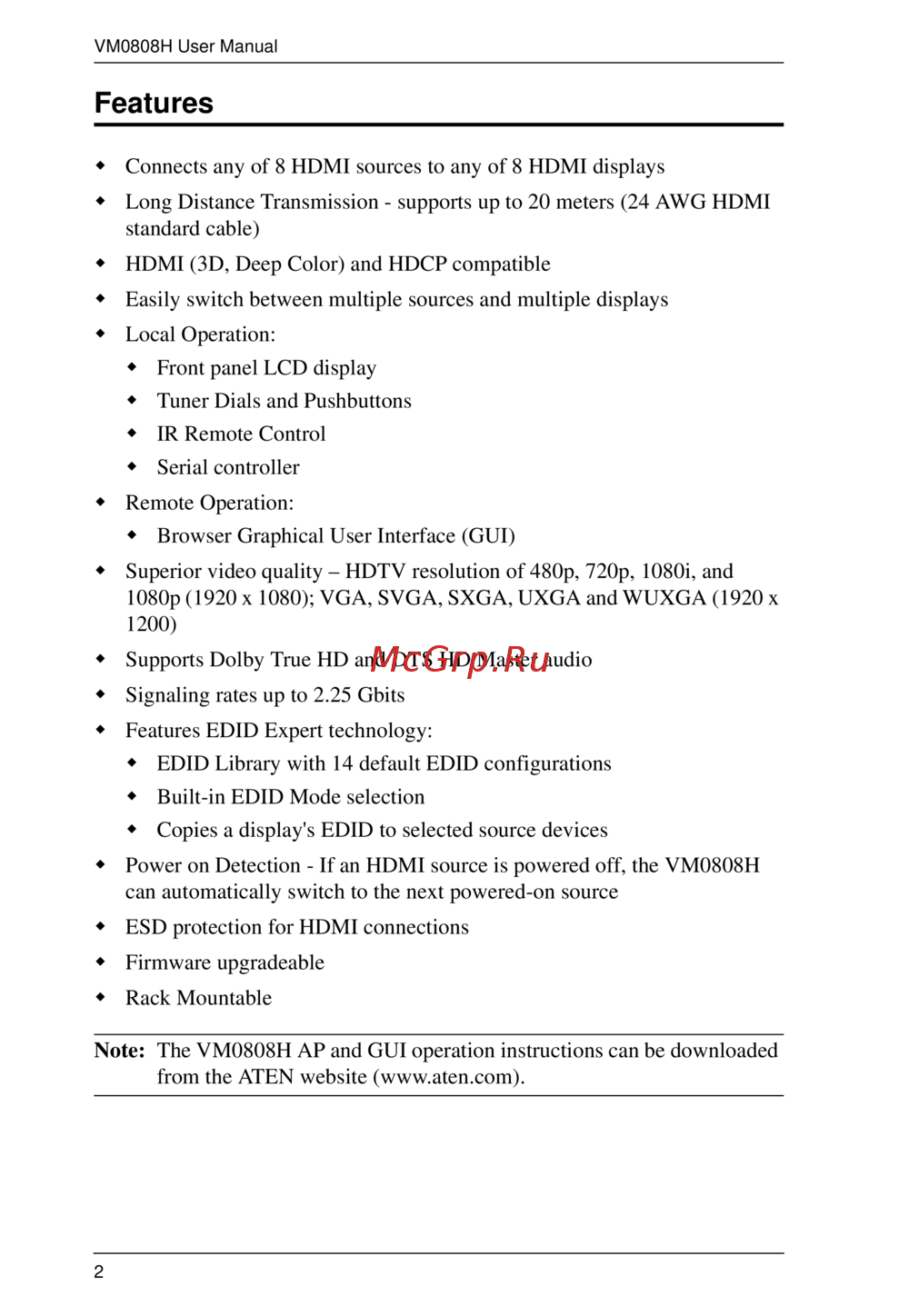

VM0808H User Manual
2
Features
Connects any of 8 HDMI sources to any of 8 HDMI displays
Long Distance Transmission - supports up to 20 meters (24 AWG HDMI
standard cable)
HDMI (3D, Deep Color) and HDCP compatible
Easily switch between multiple sources and multiple displays
Local Operation:
Front panel LCD display
Tuner Dials and Pushbuttons
IR Remote Control
Serial controller
Remote Operation:
Browser Graphical User Interface (GUI)
Superior video quality – HDTV resolution of 480p, 720p, 1080i, and
1080p (1920 x 1080); VGA, SVGA, SXGA, UXGA and WUXGA (1920 x
1200)
Supports Dolby True HD and DTS HD Master audio
Signaling rates up to 2.25 Gbits
Features EDID Expert technology:
EDID Library with 14 default EDID configurations
Built-in EDID Mode selection
Copies a display's EDID to selected source devices
Power on Detection - If an HDMI source is powered off, the VM0808H
can automatically switch to the next powered-on source
ESD protection for HDMI connections
Firmware upgradeable
Rack Mountable
Note: The VM0808H AP and GUI operation instructions can be downloaded
from the ATEN website (www.aten.com).
