VM0808H User Manual
iv

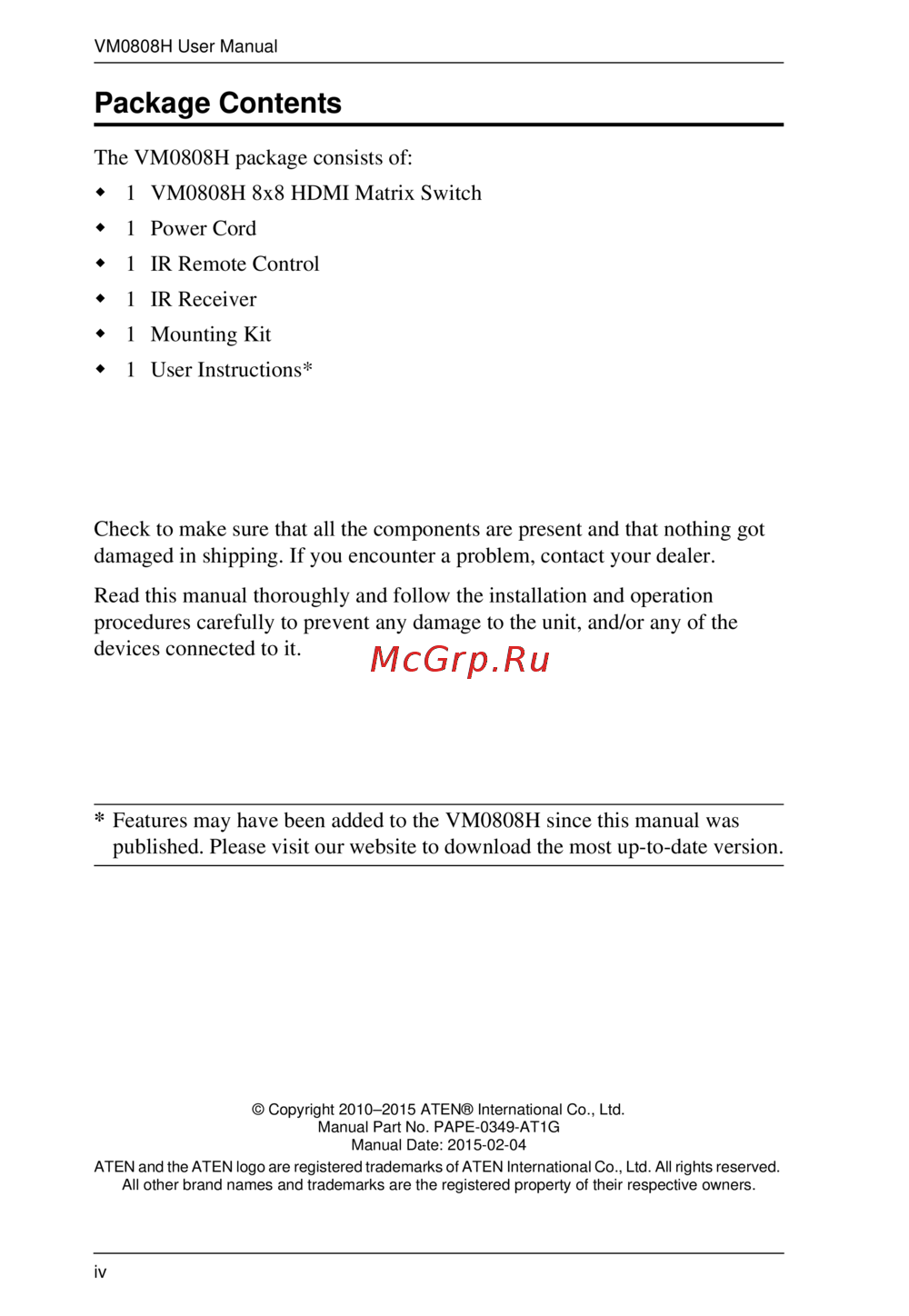

Package Contents
The VM0808H package consists of:
1 VM0808H 8x8 HDMI Matrix Switch
1Power Cord
1 IR Remote Control
1 IR Receiver
1 Mounting Kit
1 User Instructions*
Check to make sure that all the components are present and that nothing got
damaged in shipping. If you encounter a problem, contact your dealer.
Read this manual thoroughly and follow the installation and operation
procedures carefully to prevent any damage to the unit, and/or any of the
devices connected to it.
* Features may have been added to the VM0808H since this manual was
published. Please visit our website to download the most up-to-date version.
© Copyright 2010–2015 ATEN® International Co., Ltd.
Manual Part No. PAPE-0349-AT1G
Manual Date: 2015-02-04
ATEN and the ATEN logo are registered trademarks of ATEN International Co., Ltd. All rights reserved.
All other brand names and trademarks are the registered property of their respective owners.
