Руководство пользователя Страница: 19

ECS Elitegroup H110I-C4P [19/72] H110i c4p user manual

Chapter 2

H110I-C4P USER MANUAL

Install the VGA Card in the PCIE X16 slot

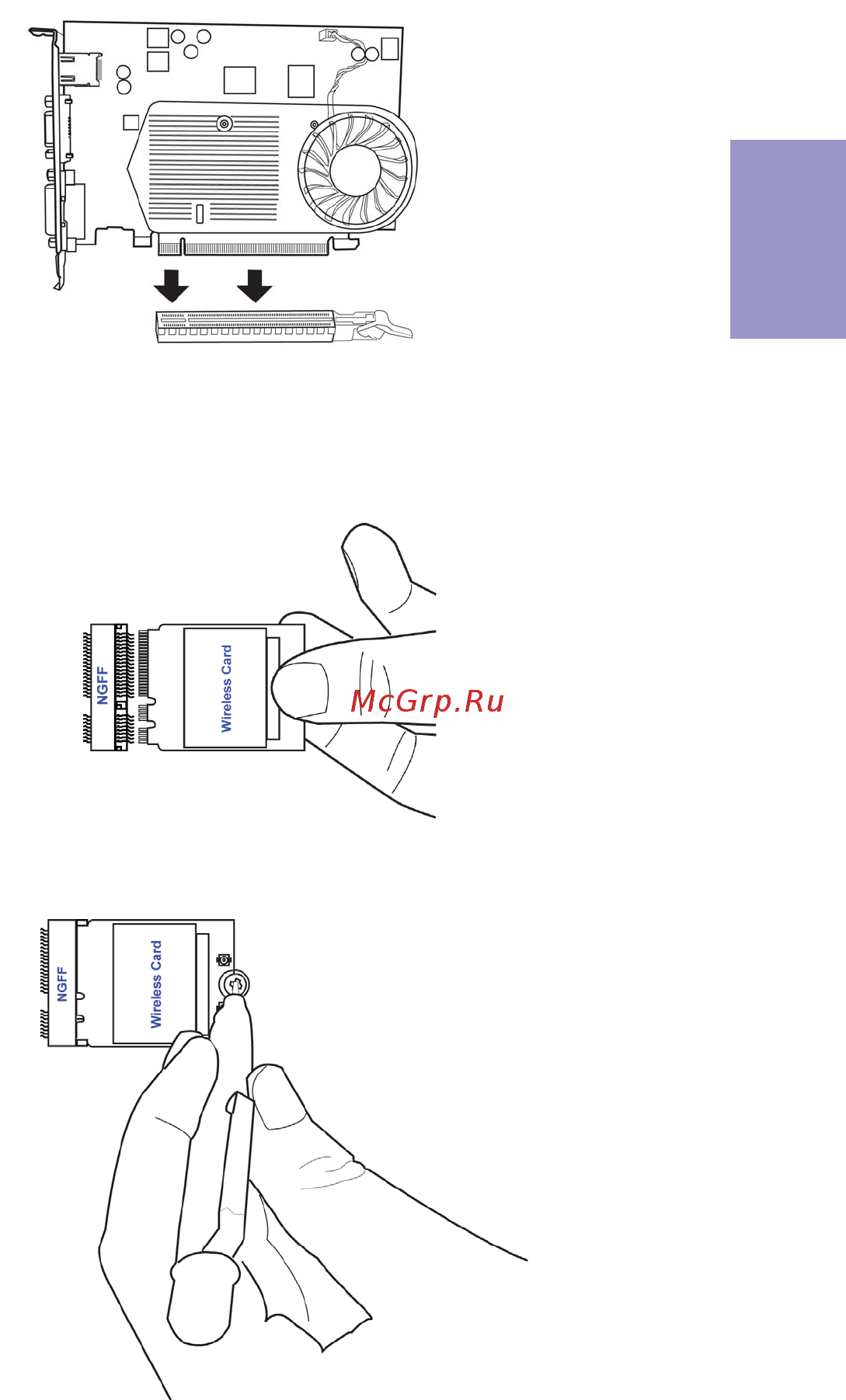

Please refer the following illustrations to install the add-on card:

Please refer the following steps to install the M.2 WiFi/BT card:

1 Insert the M.2 WiFi/BT card into NGFF slot in the fool-proof way.

2 Lock the screw as the following picture shows to make sure the M.2 WiFi/

BT card is installed in place.
