Chapter 2

H110I-C4P USER MANUAL

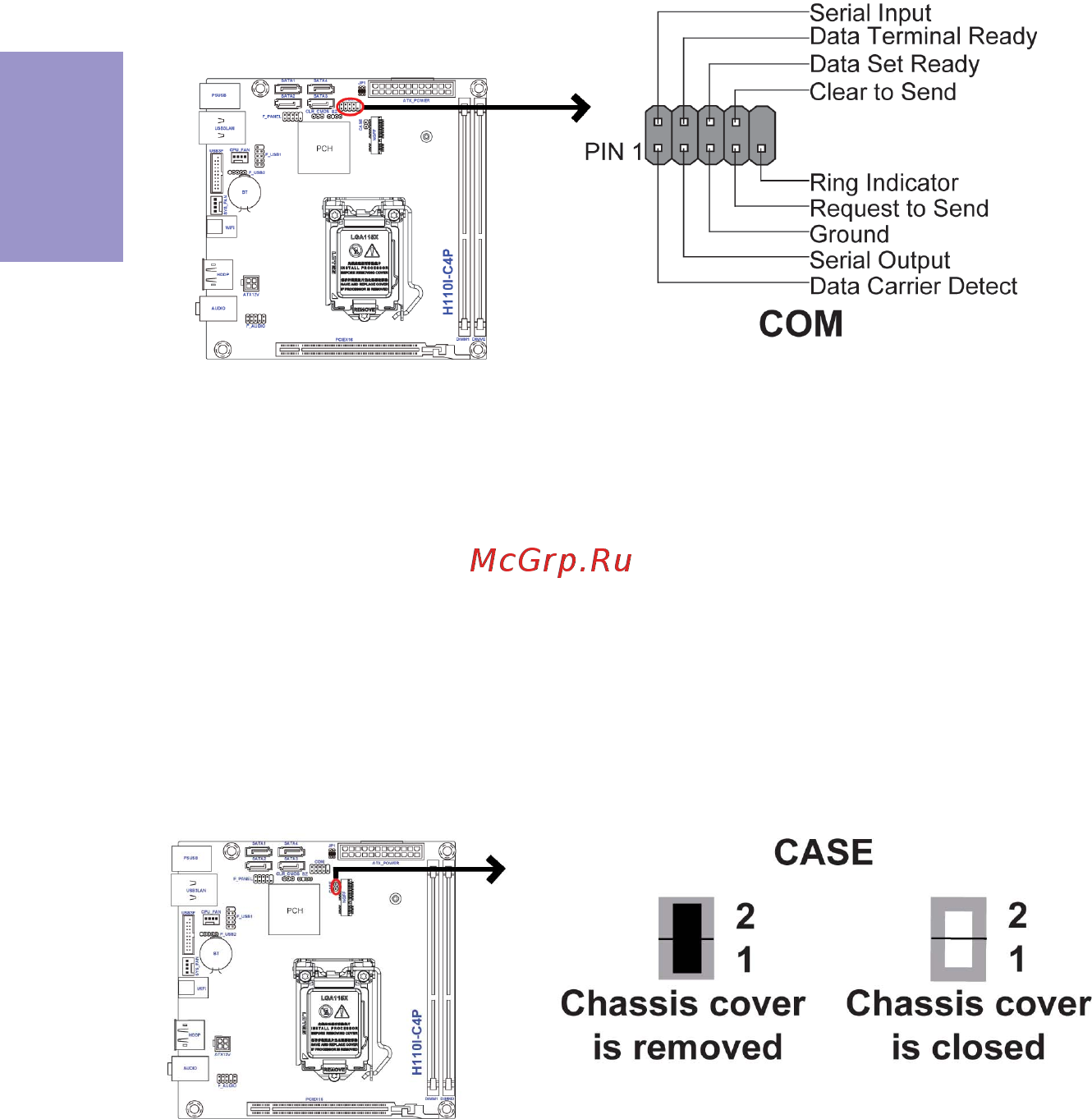

2. COM: Onboard Serial Port Header

Connect serial port extension brackets to this header to add serial port to your

system.

3. CASE: Chassis Intrusion Detect Header

This detects if the chassis cover has been removed. This function needs a chassis

equipped with instrusion detection switch and needs to be enabled in BIOS.
