Chapter 2

H110I-C4P USER MANUAL

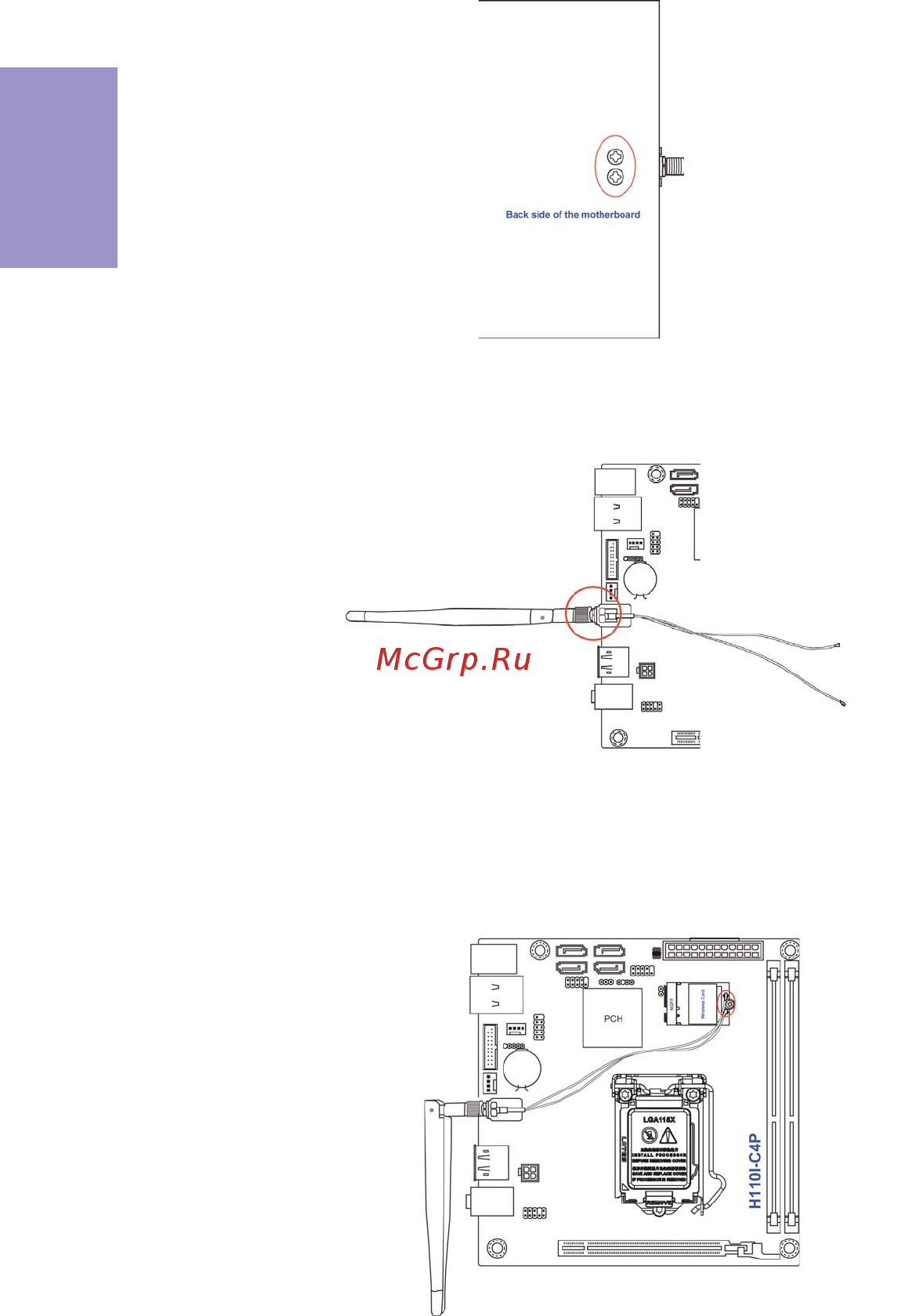

Follow these instructions to install the WiFi antenna (Optional):

1 Fix the WiFi antenna connector with the two screws on the back side of

the motherboard.

2 Screw down the WiFi antennas on to the gold screws of the WiFi antenna

connector.

3 Press the two metal connectors of the WiFi antenna connector cables

into the connectors on the wireless card, and ensure that the metal

connectors are correctly seated.
