Chapter 2

B85H3-M7 USER MANUAL

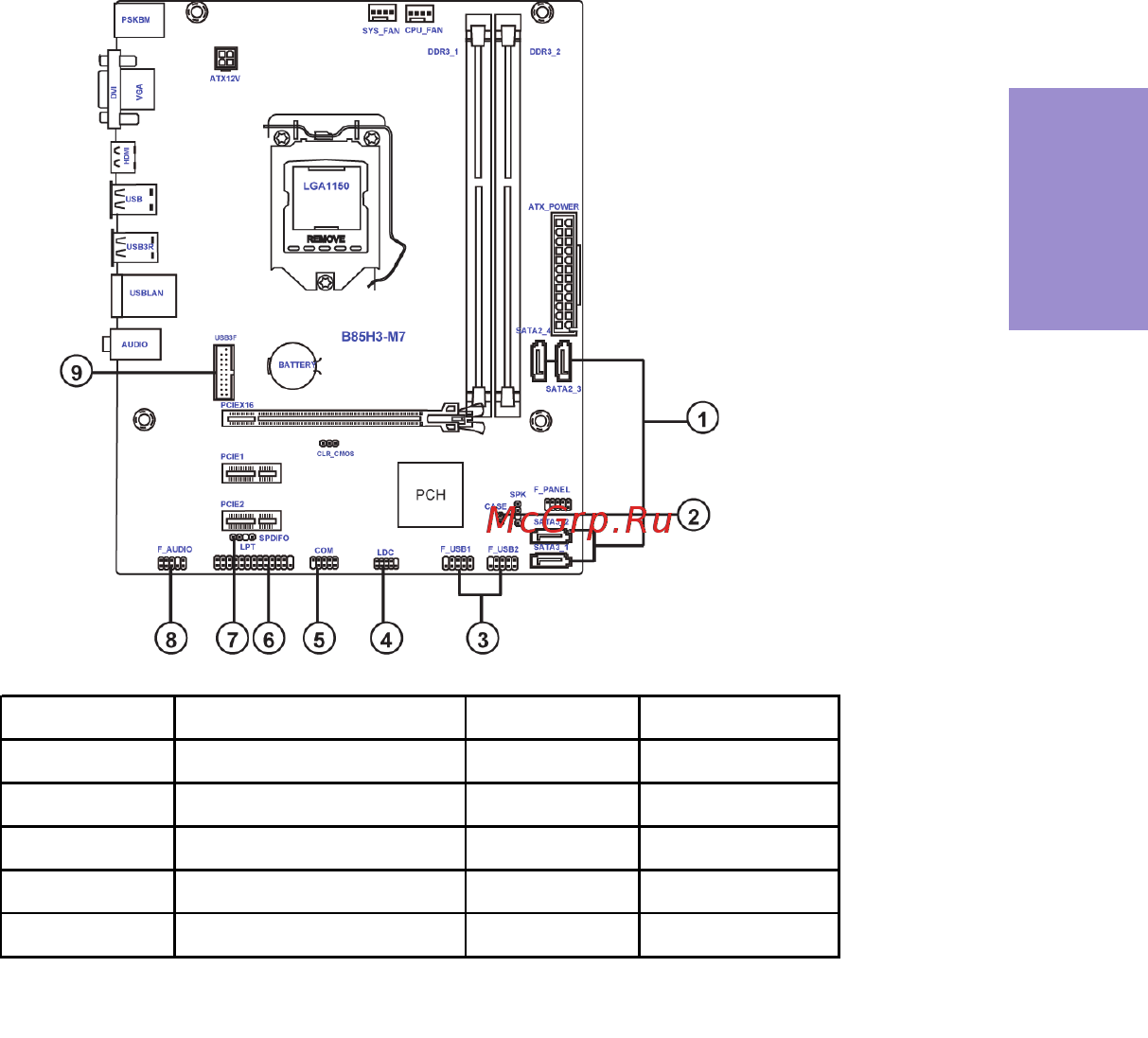

2-4-5. Connecting Optional Devices

Refer to the following for information on connecting the motherboard’s optional

devices:

No. Components No. Components

1 SATA2_3/4 & SATA3_1/2 6 LPT

2 CASE 7 SPDIFO

3F_USB1~28F_AUDIO

4LDC9USB3F

5COM~ ~
