ECS Elitegroup B85H3-M7 [25/74] B85h3 m7 user manual

Chapter 2

B85H3-M7 USER MANUAL

Please make sure that the USB cable has the same pin assignment as indi-

cated above. A different pin assignment may cause damage or system hang-

up.

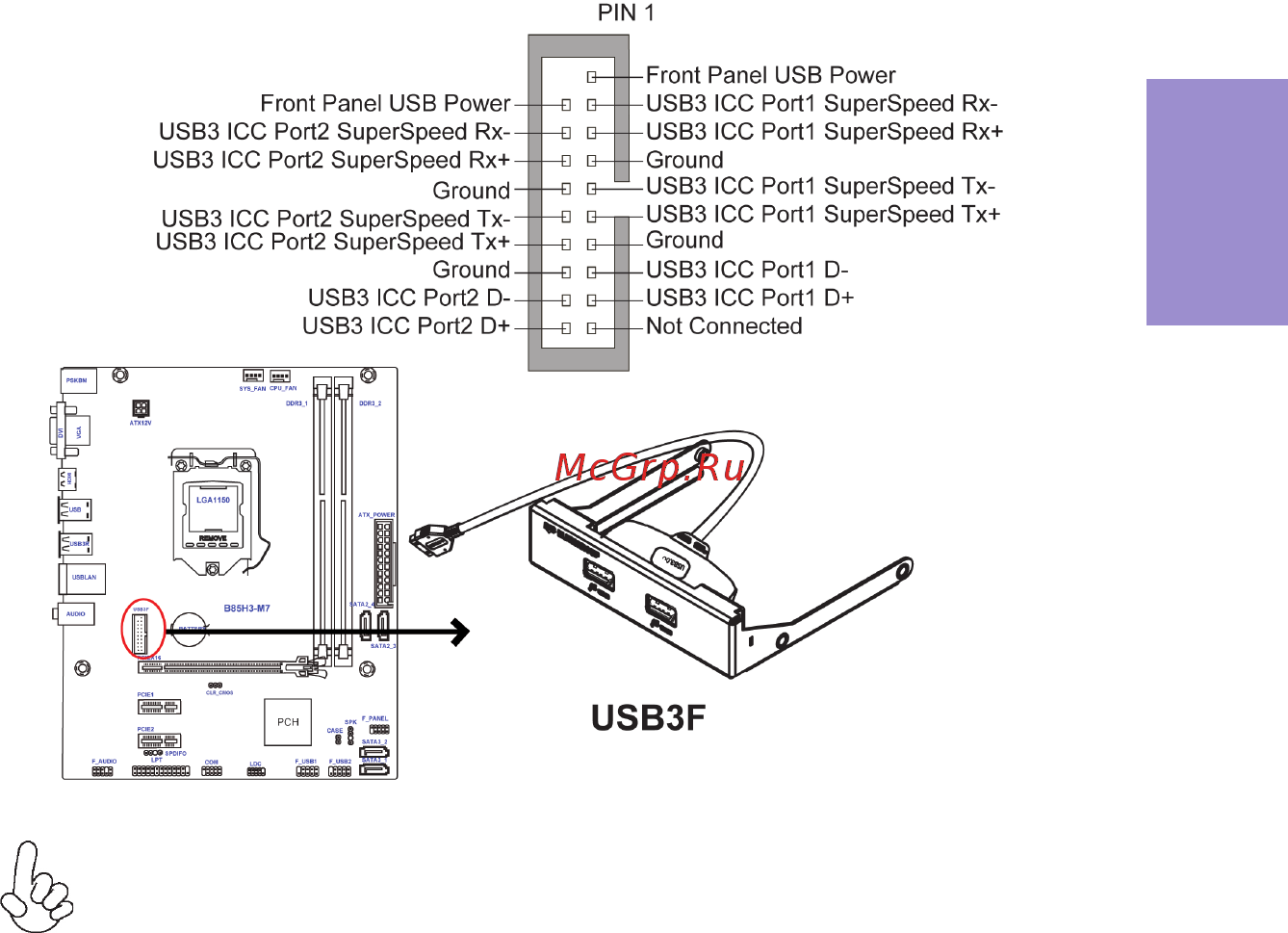

This Motherboard implements one USB 3.0 header supporting 2 extra front USB 3.0

ports, which delivers 5Gb/s transfer rate.

9. USB3F: Front Panel USB 3.0 header
