Chapter 2

A68F2P-M2 USER MANUAL

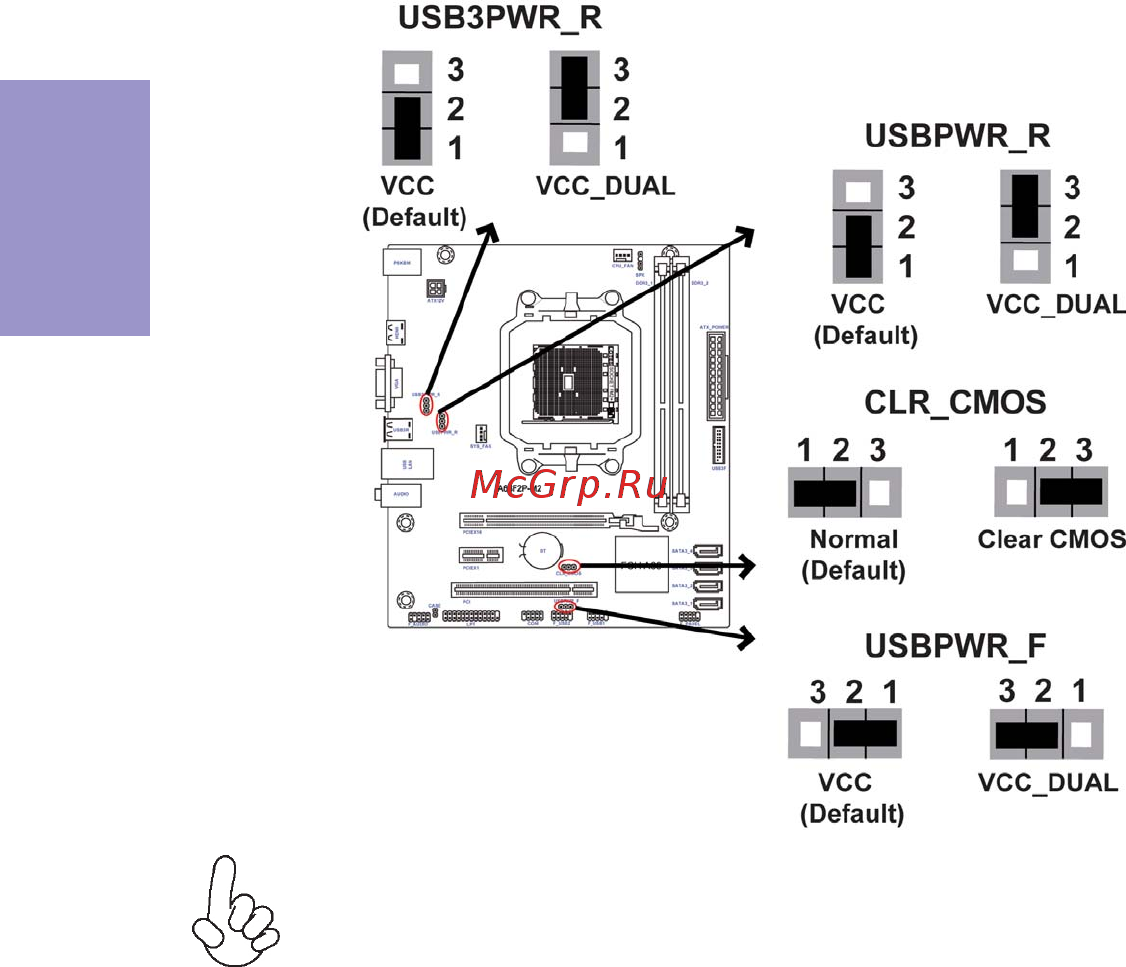

The following illustration shows the location of the motherboard jumpers. Pin 1 is

labeled.

1. To avoid the system instability after clearing CMOS, we recommend users to

enter the main BIOS setting page to “Load Default Settings” and then “Save

and Exit Setup”.

2. Make sure the power supply provides enough VCC_DUAL voltage before

selecting the VCC_DUAL function.

3. It is required that users place the USBPWR_F & USBPWR_R cap onto 2-3 pin

rather than 1-2 pin as default if you want to wake up the computer by USB/

PS2 KB/Mouse.

2-3. Checking Jumper Settings
