Chapter 2

A68F2P-M2 USER MANUAL

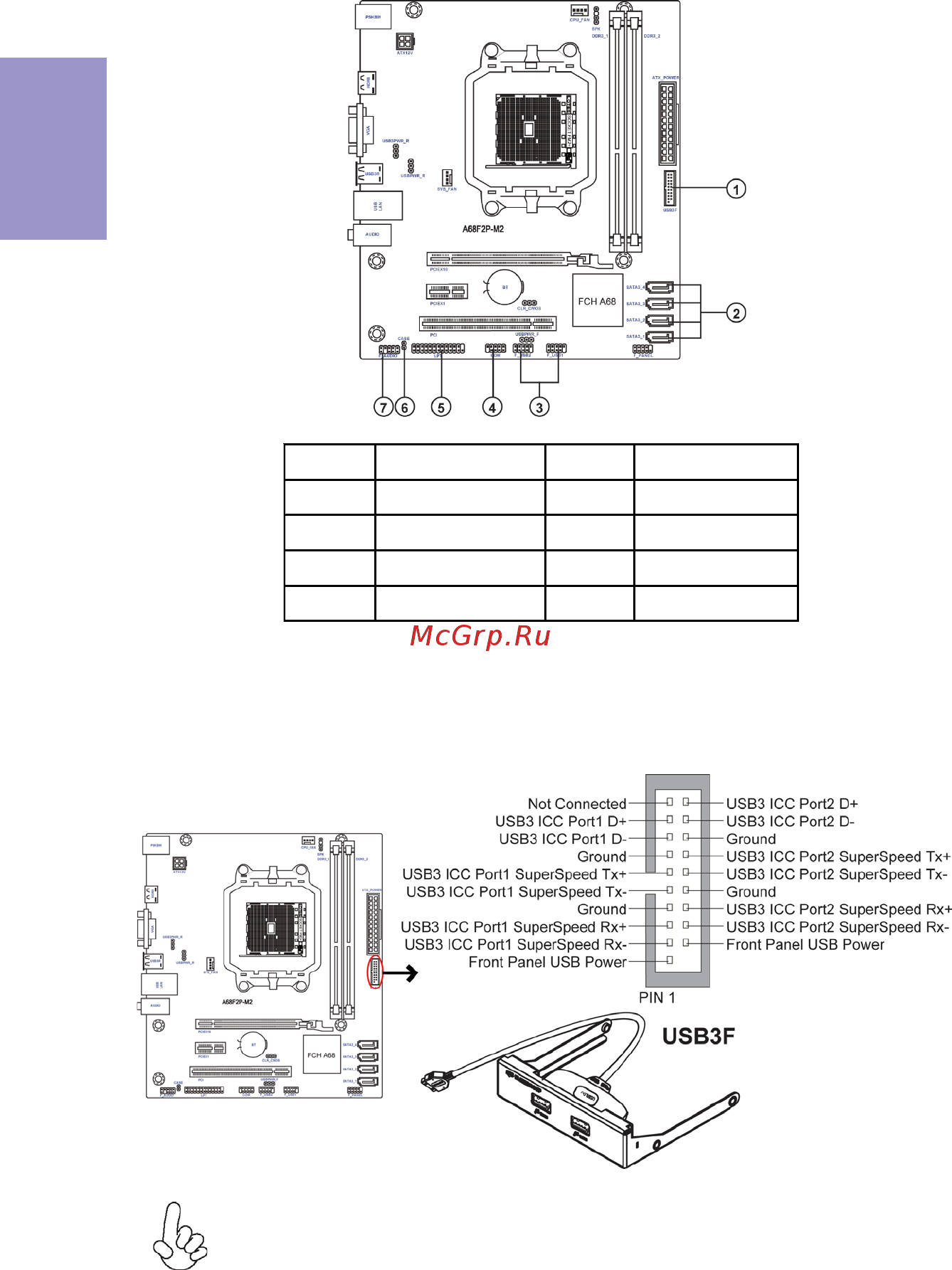

2-4-5. Connecting Optional Devices

Refer to the following for information on connecting the motherboard’s optional

devices:

No. Components No. Components

1USB3F5 LPT

2 SATA3_1~4 6 CASE

3F_USB1~27F_AUDIO

4COM~ ~

Please make sure that the USB cable has the same pin assignment as

indicated above. A different pin assignment may cause damage or system

hang-up.

This Motherboard implements one USB 3.0 header supporting 2 extra front USB 3.0

ports, which delivers 5Gb/s transfer rate.

1. USB3F: Front Panel USB 3.0 Header
