Installing the Motherboard
Connecting Optional Devices
Refer to the following for information on connecting the motherboard’s optional
devices:
The front panel audio header allows the user to install auxiliary front-oriented
microphone and line-out ports for easier access. This header supports HD audio by
default. If you want connect an AC
’ 97 front panel audio to HD onboard headers,
please set as below picture.

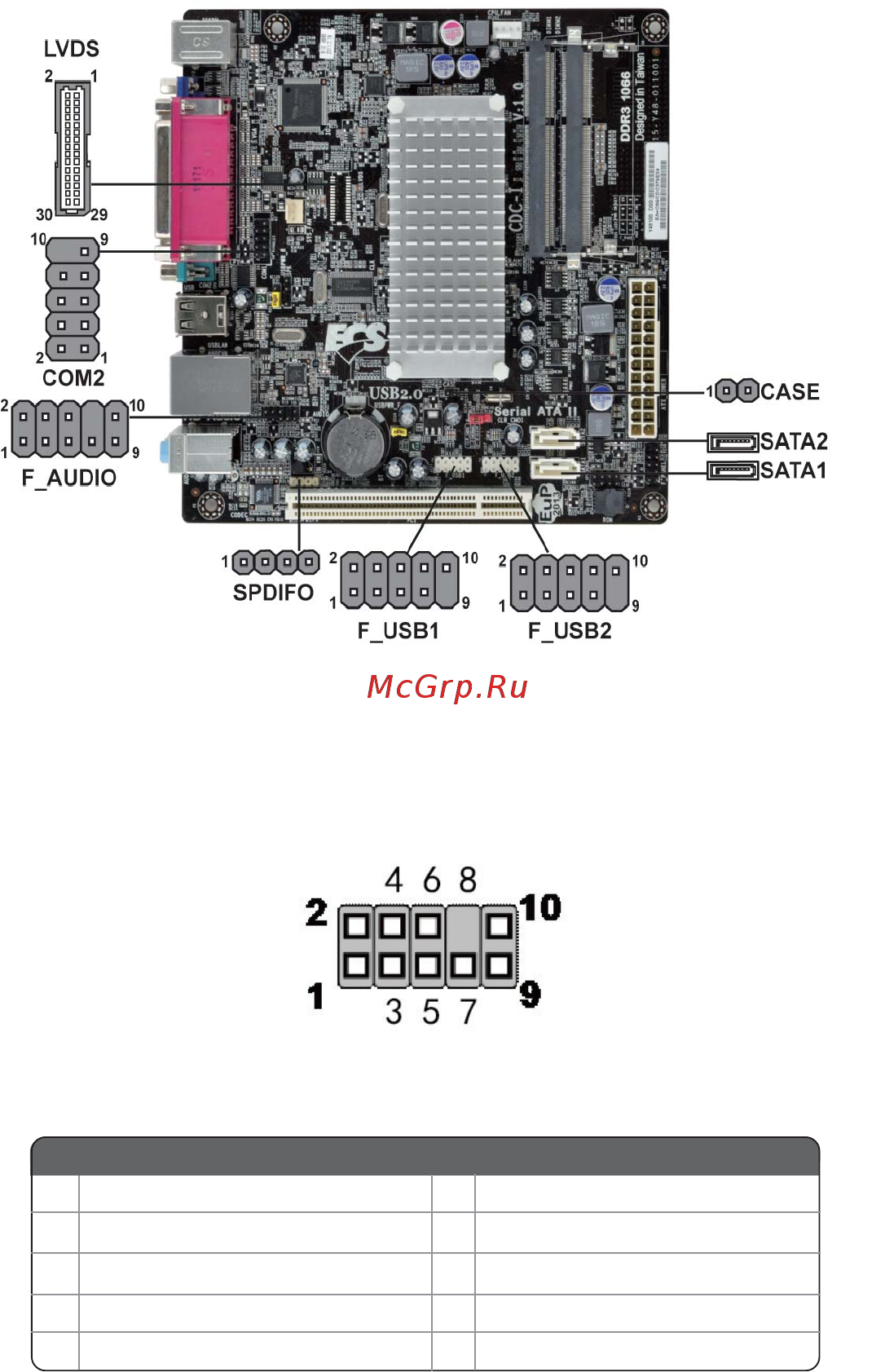

F_AUDIO: Front Panel Audio Header
For HD Front Audio
9 Left channel to front panel
10 Sense2_Return
2 Analog groud
4 Presence#
6 Sensel_Return
8 No pin
Pin Description
1 Front panel microphone input signal
3 Microphone power
5 Right channel to front panel
7 Sense_Send
Pin Description
