Using BIOS

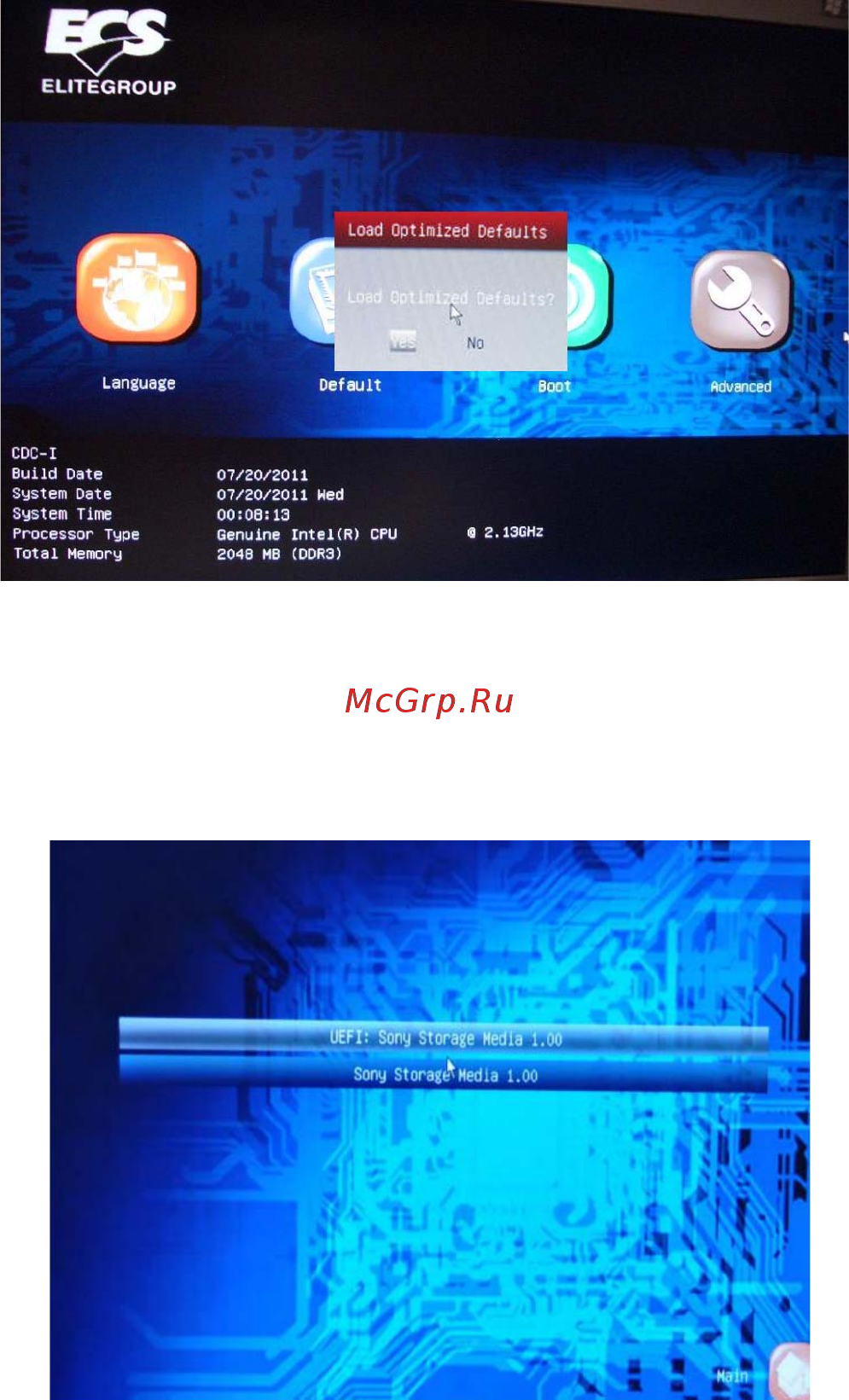

Select the default icon and press <Enter> or double click the left key of the mouse

to display the following screen. Then you can load optimized defaults or not.

Default

Select the boot icon and press <Enter> or double click the left key of the mouse to

display the following screen. Then you can choose the boot device.

Boot
