Chapter 2

B85H3-M6 USER MANUAL

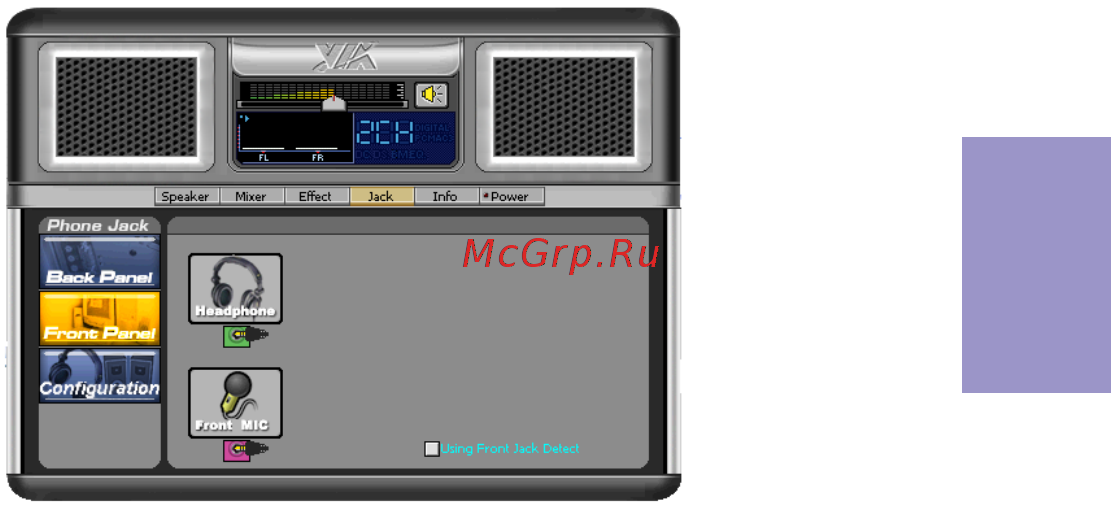

If you use AC’ 97 Front Panel, please don’ t tick off “Using Front Jack Detect ”. If you

use HD Audio Front Panel, please

tick off the option of “Using Front Jack Detect ”.

* For reference only
