ECS Elitegroup H61H-G11 (V7.0) [24/54] Connecting case components

Installing the Motherboard

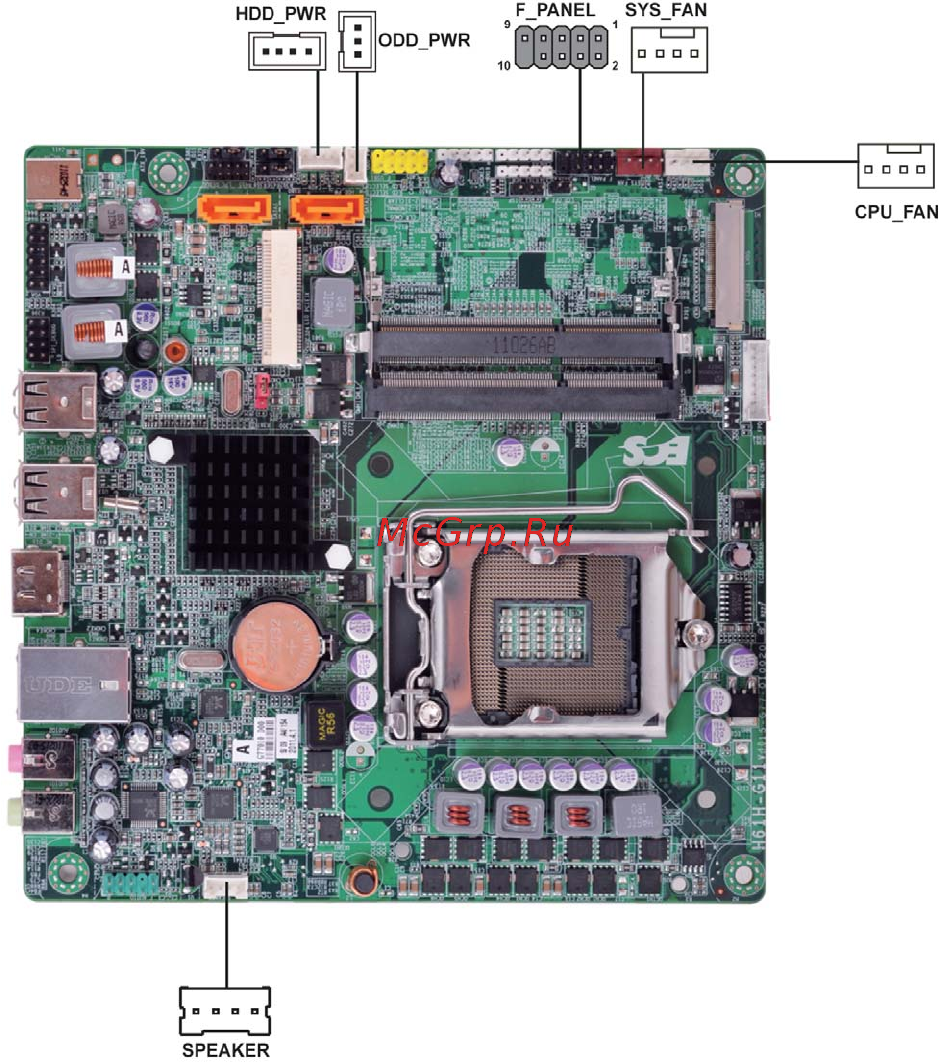

Connecting Case Components

After you have installed the motherboard into a case, you can begin connecting the

motherboard components. Refer to the following:

1 Connect the CPU cooling fan cable to CPU_FAN.

2 Connect the case switches and indicator LEDs to the F_PANEL.

3 Connect the system cooling fan connector to SYS_FAN.

4 Connect the case speaker cable to SPEAKER.
