ECS Elitegroup H61H2-M17 (V1.0) [21/72] H61h2 m17 user manual

Chapter 2

H61H2-M17 USER MANUAL

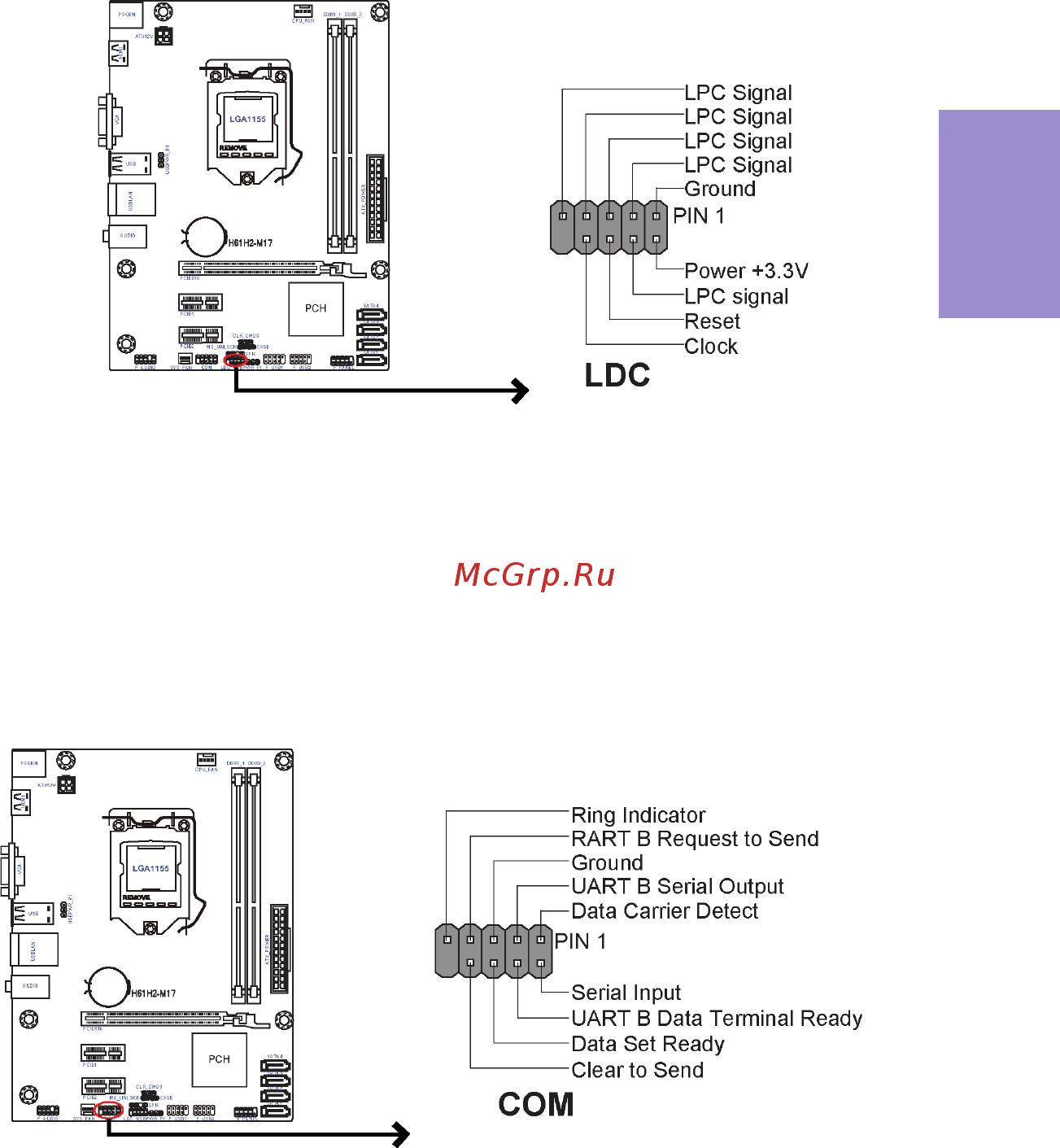

5. COM: Onboard serial port header

Connect a serial port extension bracket to this header to add a serial port to your

system.

4. LDC: Debug Card Header
