Руководство пользователя Страница: 23

ECS Elitegroup H77H2-M [23/80] H77h2 m user manual

Chapter 2

H77H2-M USER MANUAL

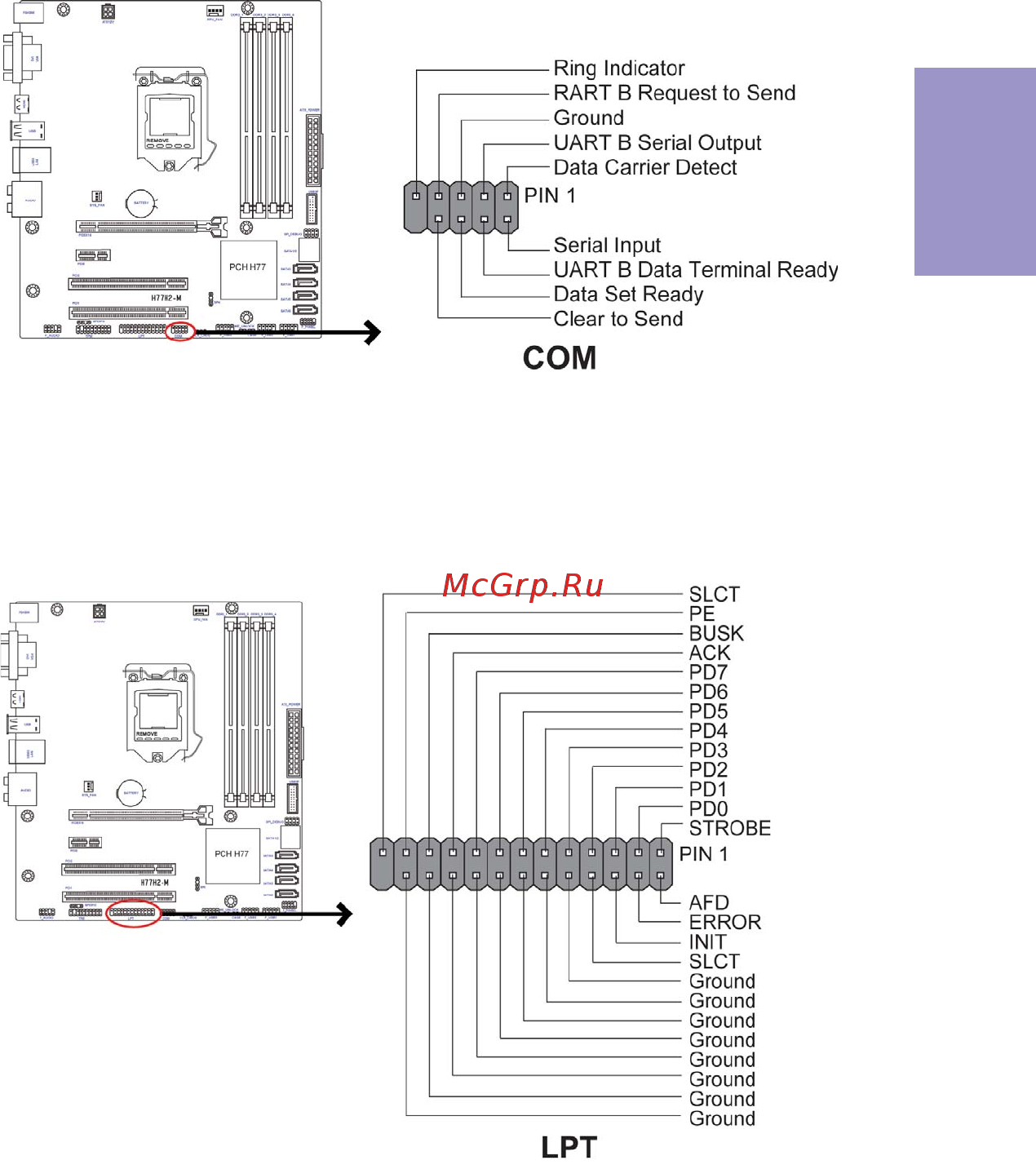

6. LPT: Onboard parallel port Header

This is a header that can be used to connect to the printer, scanner or other devices.

5. COM: Onboard serial port header

Connect a serial port extension bracket to this header to add a serial port to your

system.
