CONFIGURATION OF TIMER FUNCTIONS

The various types of timer, and thus its functions, are configured according to the wiring connectors.

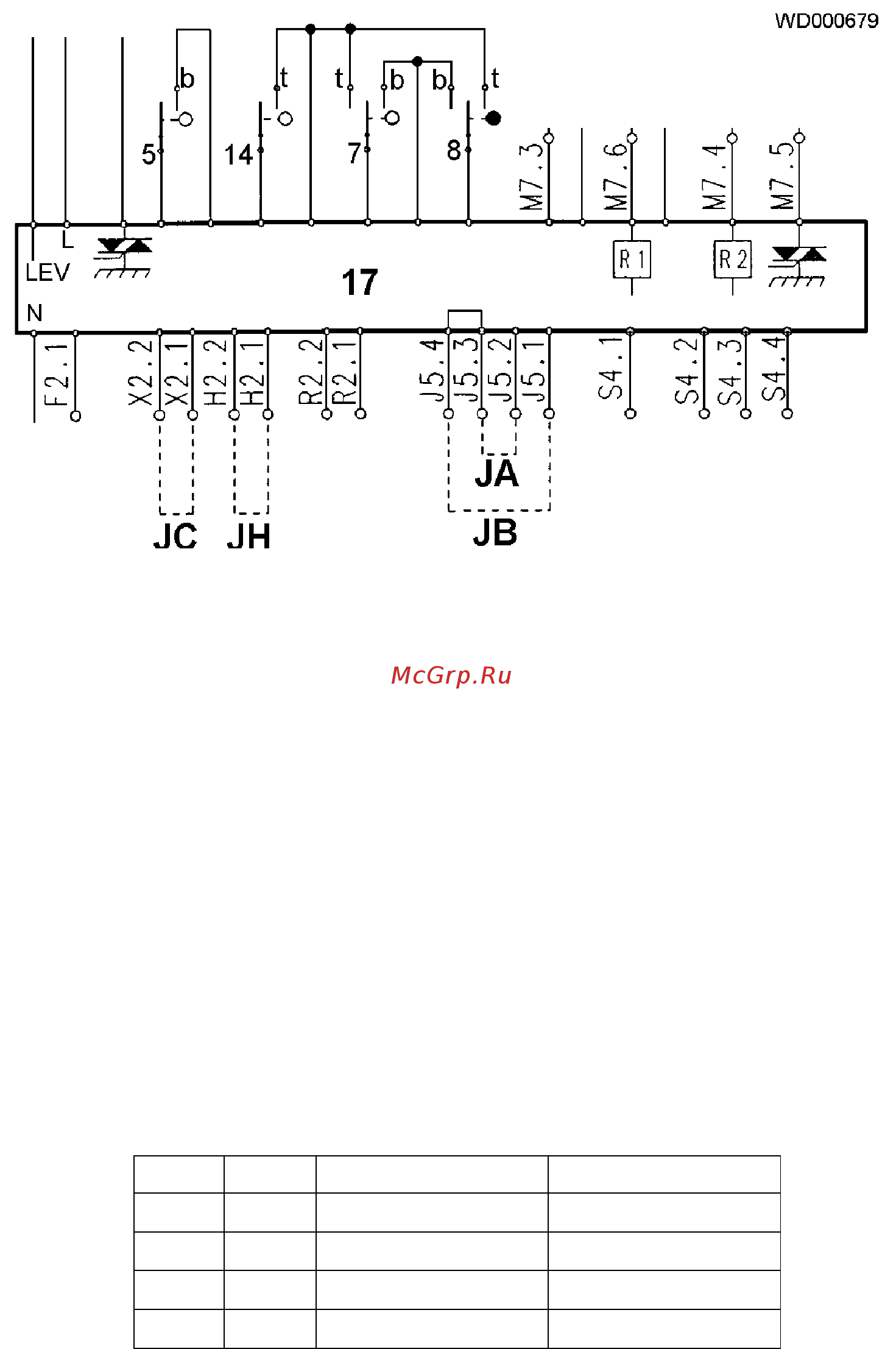

1 Electronic control board

JC Connector which determines the timer functions:

VD50 - VD50J - VD51 if there is no jumper between X2.1 and X2.2

VD52 - VD53 - VD53J if a jumper is fitted between X2.1 and X2.2

JH This connector is used in conjunction with the "rinse hold" button.

If there is no jumper between H2.1 and H2.2, the "rinse hold" option can be selected (by

pressing the button) in cycles for SYNTHETICS, DELICATES and WOOL.

If a jumper is inserted between H2.1 and H2.2, this function is enabled at the end of the rinses

in COTTON cycles, too.

JA - JB Depending on the type of model, these connectors determine the transmission ratio between

the motor pulley and the drum pulley, and thus the speed of the final spin cycle:

JB JA Ratio Max. speed

0 0 1 / 18 600

0 1 1 / 18 800

1 0 1 / 14 900

1 1 1 / 14 1000

TSE-P 08/98 eb 6/17 599 33 62-25/9
