14D-Link DIR-855 User Manual
Section 3 - Configuration
Configuration
This section will show you how to congure your new D-Link wireless router using the web-based conguration
utility.
Web-based Configuration Utility

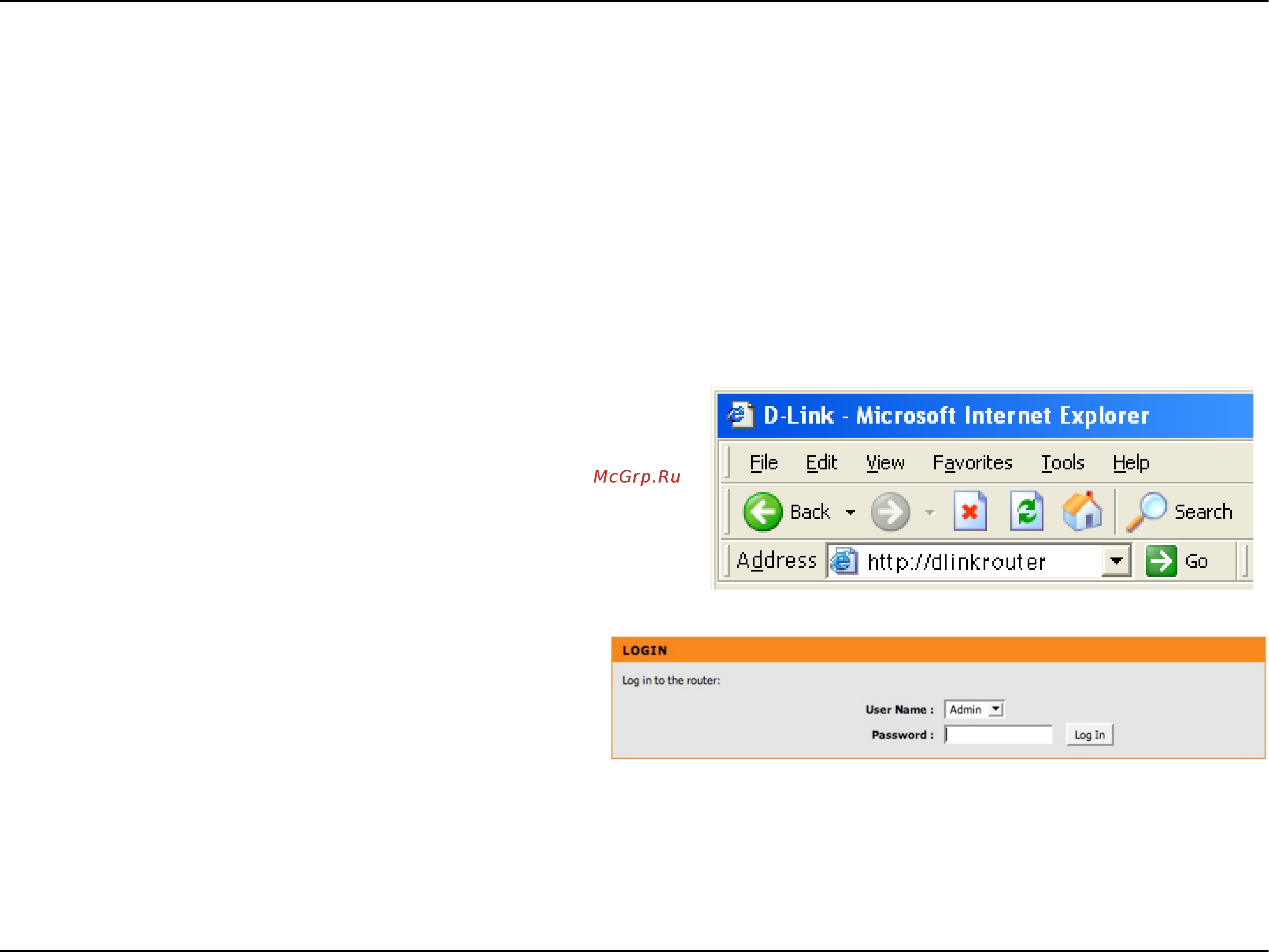

To access the conguration utility, open a web-browser
such as Internet Explorer and enter http://dlinkrouter or
http://192.168.0.1
Select Admin from the drop-down menu and then enter
your password. Leave the password blank by default.
If you get a Page Cannot be Displayed error, please
refer to the Troubleshooting section for assistance.
