Asus p9d-mv [121/156] Deleting a volume

ASUS P9D-M Series

5-17

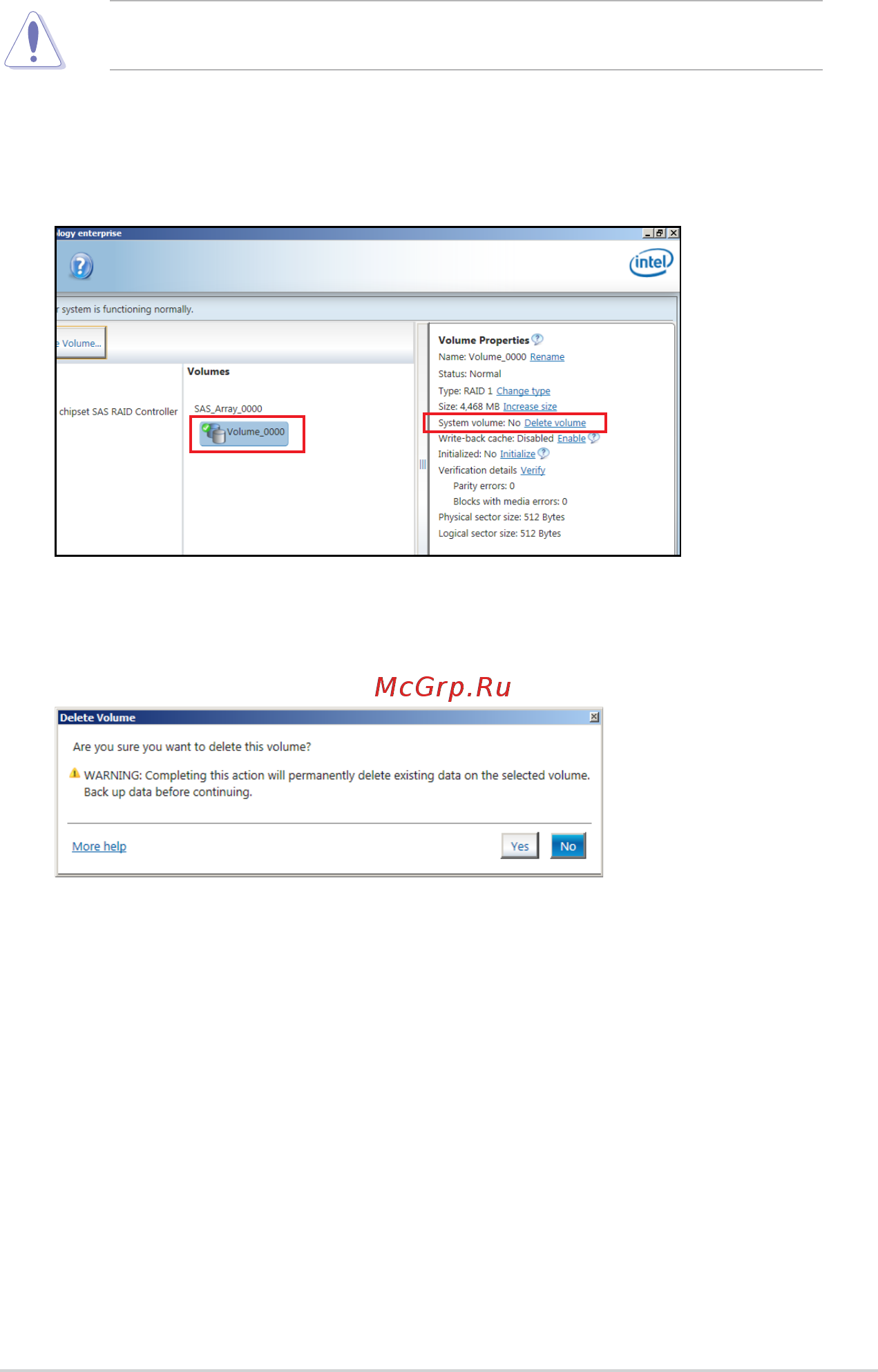

5.3.3 Deleting a volume

Be cautious when deleting a volume. You will lose all data on the hard disk drives. Before you

proceed, ensure that you back up all your important data from your hard drives.

To delete a volume:

1. From the

Volumes eld in the utility main menu, select the volume that you want to

delete.

2. From the Volume Properties eld, select Delete volume.

3. Click

Yes to delete the volume and return to the utility main menu, or click No to return

to the main menu.
