2-22

Chapter 2: Hardware information

2.5.7 Installing the Baseboard Management Card (P9D-M and

P9D-MV models only)

Follow the steps below to install an optional ASMB7 Management Card on your

motherboard.

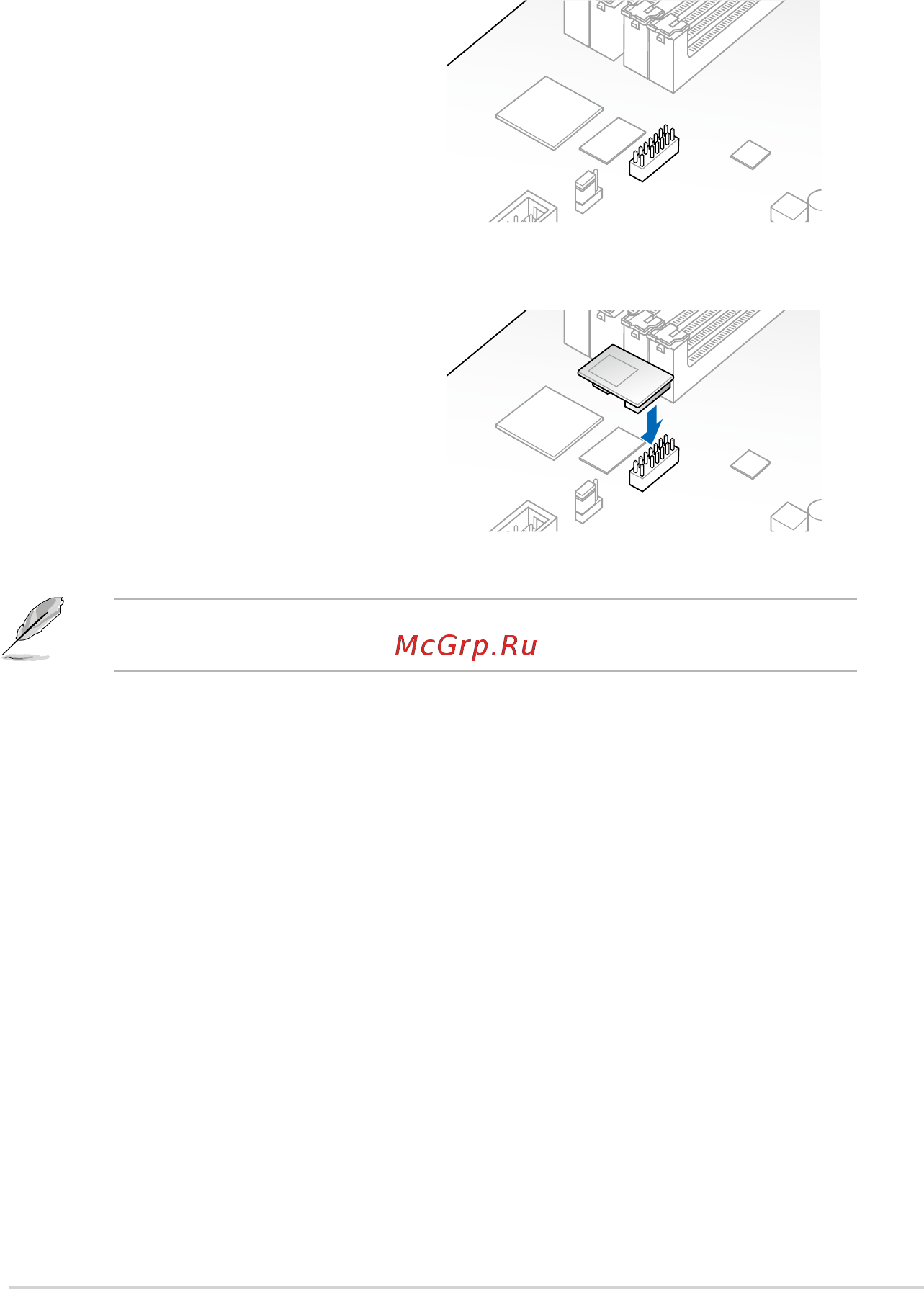

1. Locate the Baseboard Management

Card header on the motherboard.

2. Orient and press the Management

Card in place.

The motherboard illustration is for reference only. The motherboard layout and appearance

may vary depending on the model, but the installation steps remain the same.
