6-16 Chapter 6: Driver installation

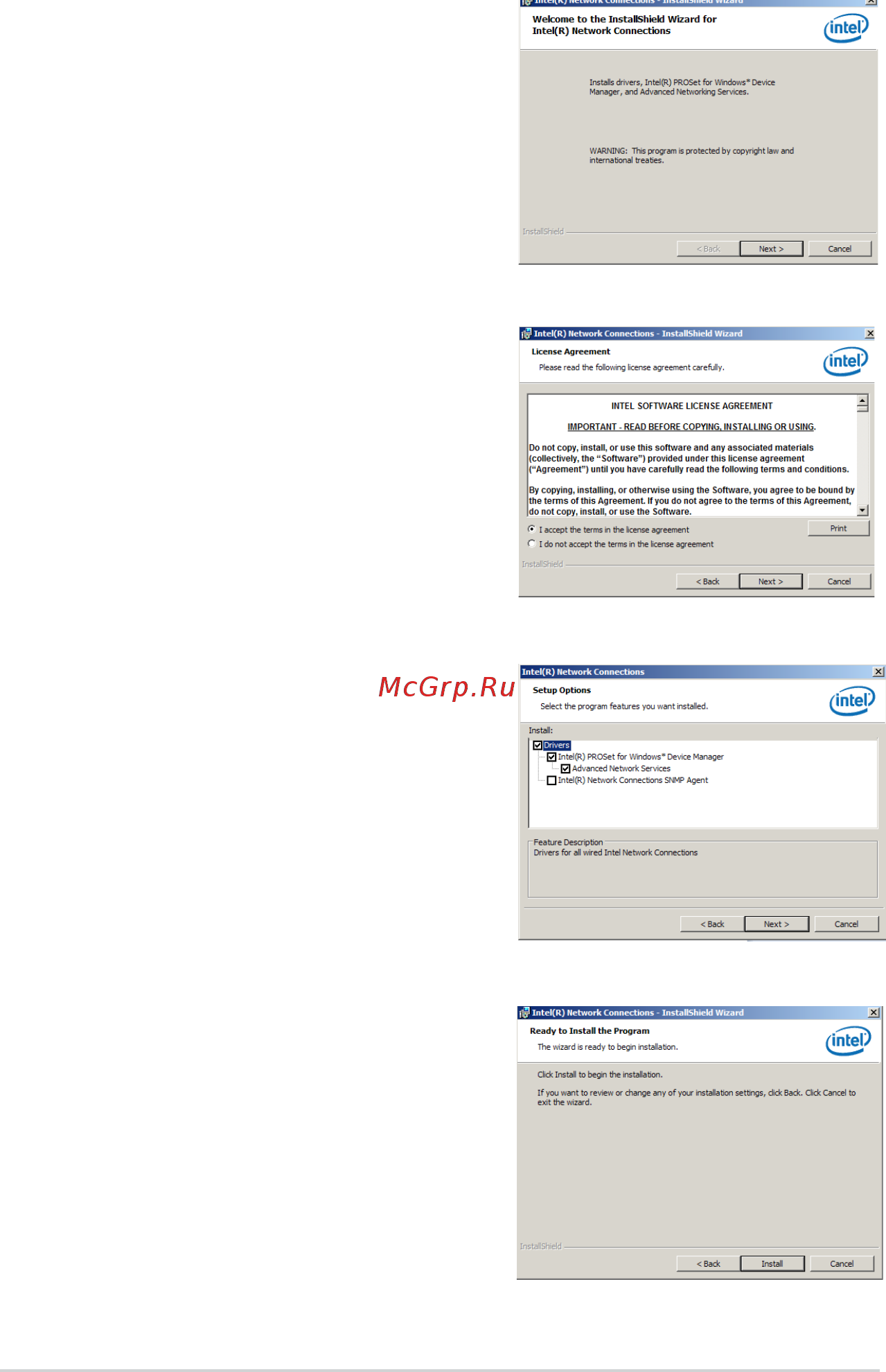

6. Click Next i n the Welcome to the

InstallShield Wizard for Intel(R) Network

Connections.

7. From the License Agreement window,

select I accept the terms in the license

agreement then click Next.

8. Select the drivers you want to install in the

Setup Options window and click Next.

9. From the Ready to Install the Program

window, click Install.
