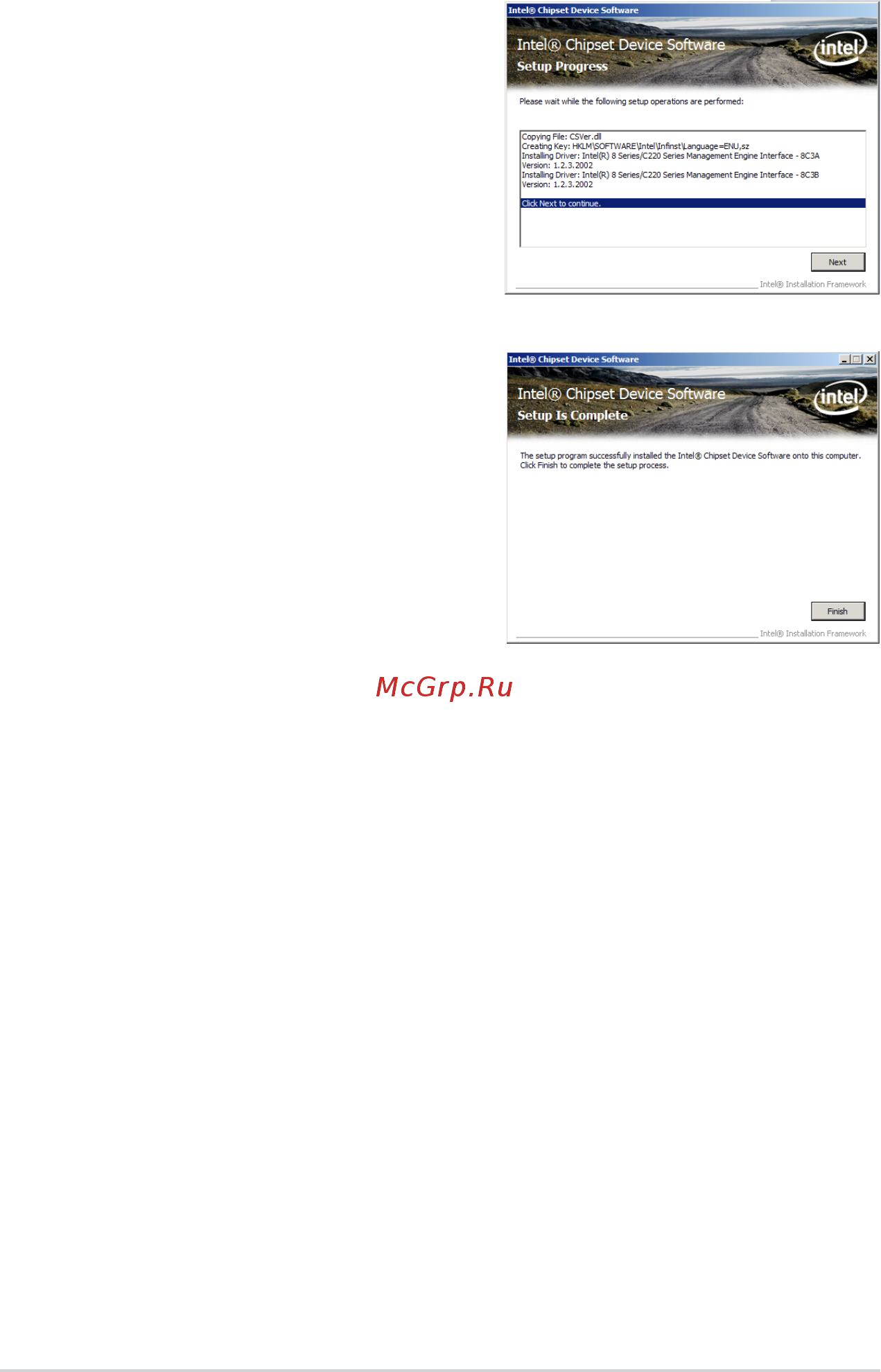

6-24 Chapter 6: Driver installation

7. Click

when the installation of

driver is complete.

8. Click

Finish

to complete the installation.
