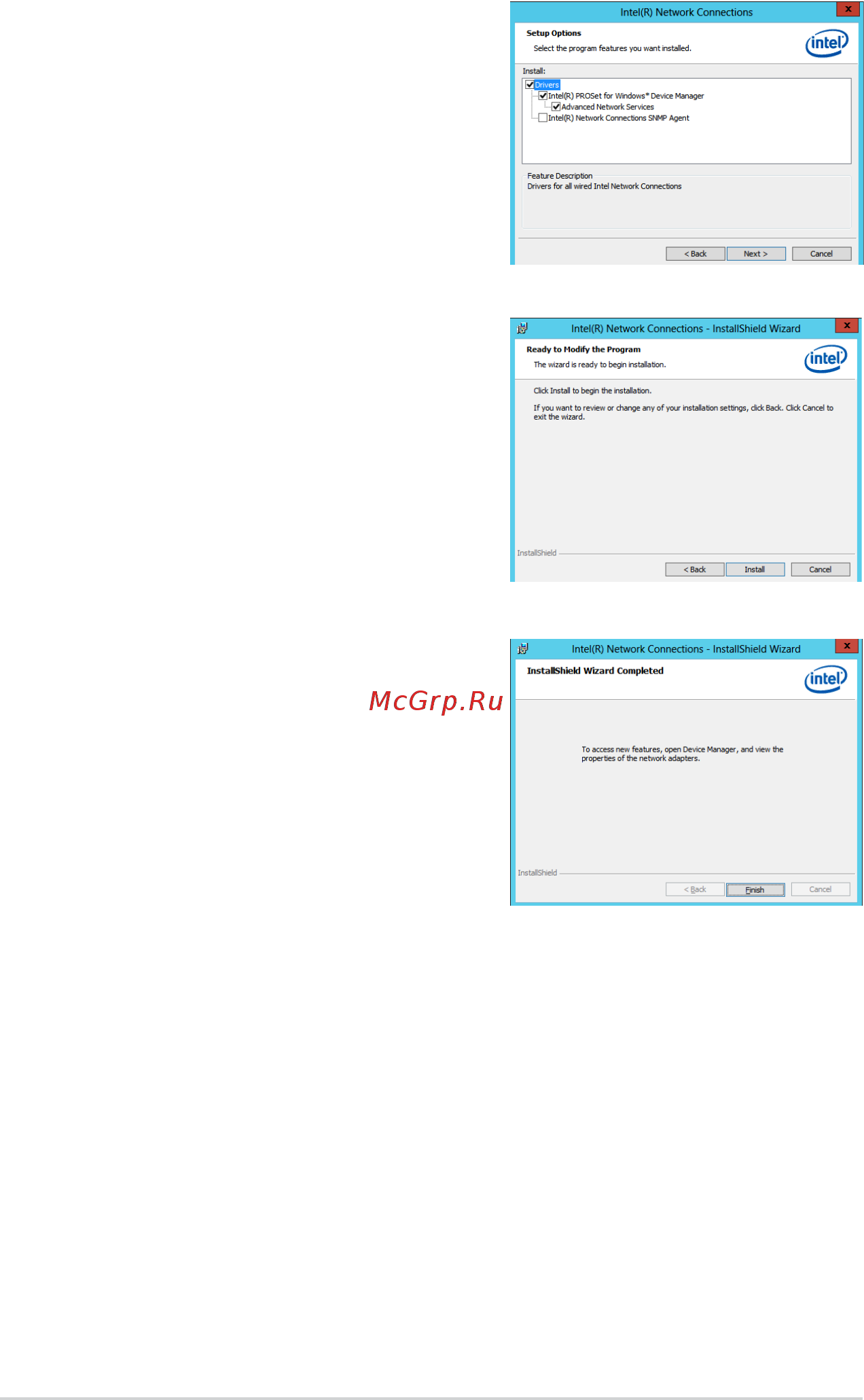

6-26 Chapter 6: Driver installation

8. Click Install in the Ready to Modify the

Program window to begin with the loading

of the selected options.

7. Select the options you want to install then

click Next to continue.

9. When done, click Finish.
