2-32

Chapter 2: Hardware information

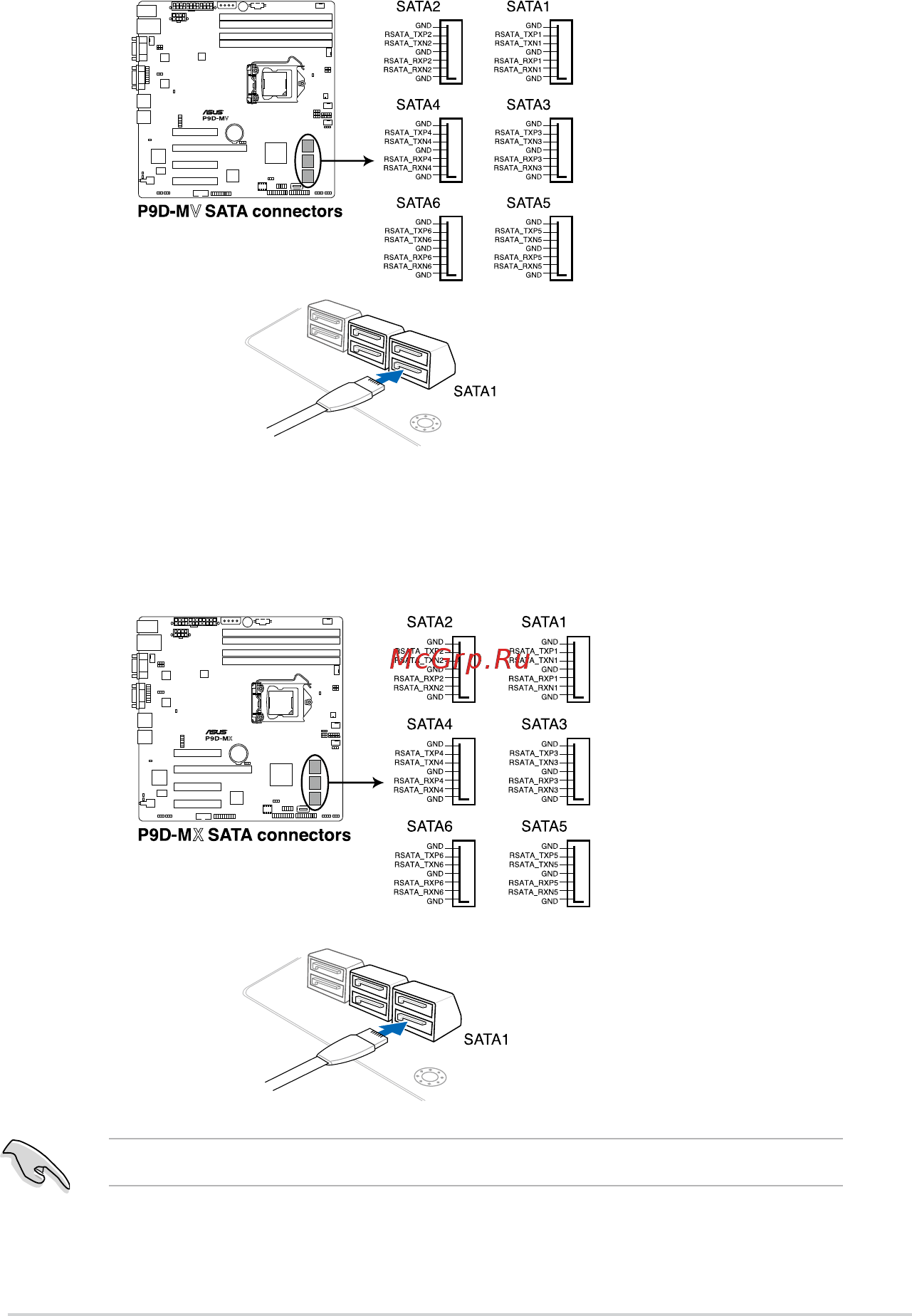

P9D-MV

• 7-pin SATA 6Gbps_1-2 connector [Light Blue])

• 7-pin SATA 3Gbps_3-6 connector [Black])

P9D-MX

• 7-pin SATA 6Gbps_1-2 connector [Light Blue])

• 7-pin SATA 3Gbps_3-6 connector [Black])

The actual data transfer rate depends on the speed of Serial ATA hard disks installed.
