107

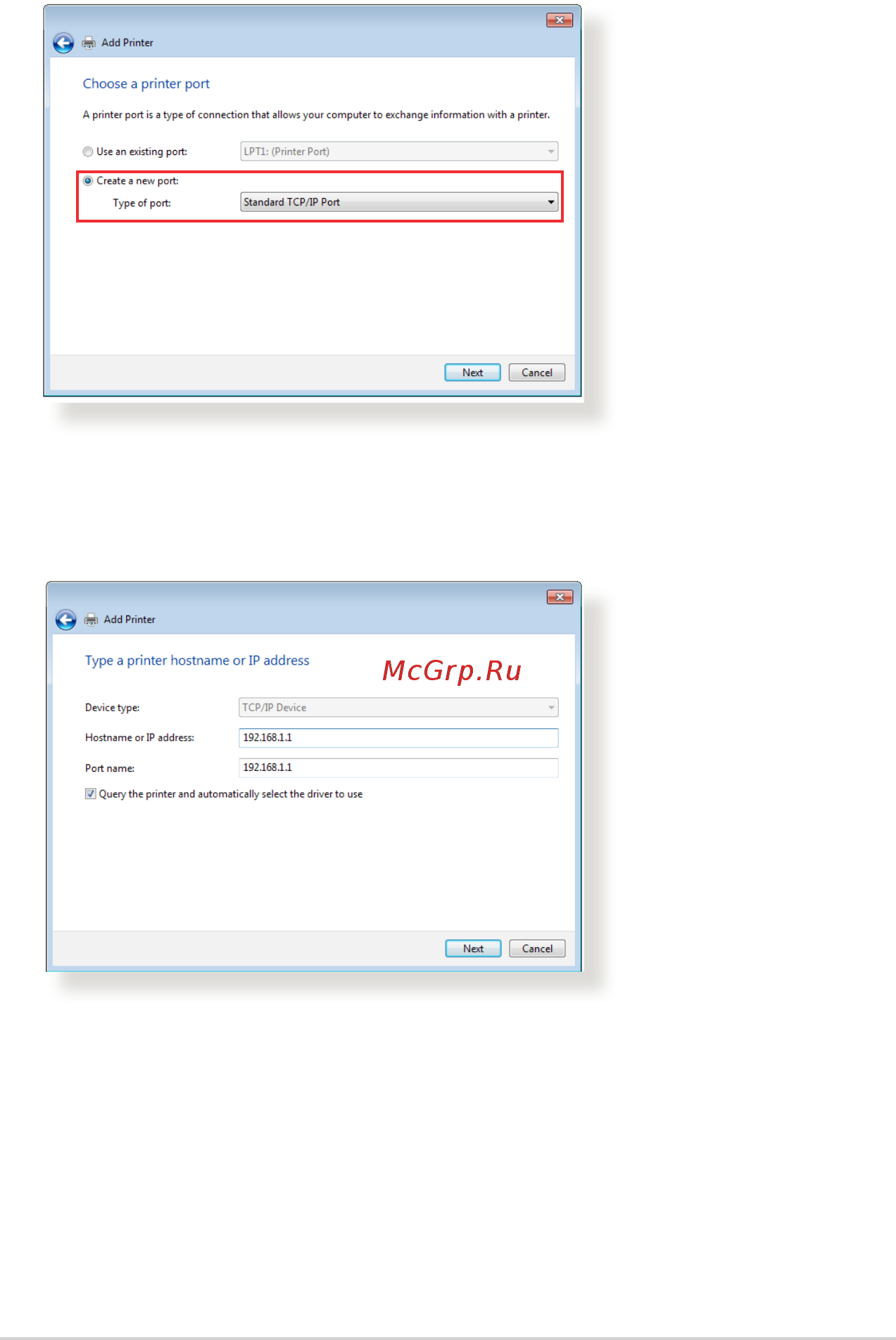

3. Select Create a new port then set Type of Port to Standard

TCP/IP Port. Click New Port.

4. In the Hostname or IP address ﬁeld, key in the IP address of

the wireless router then click Next.
