3 Conﬁguring the General

settings

3.1 Using the Network Map

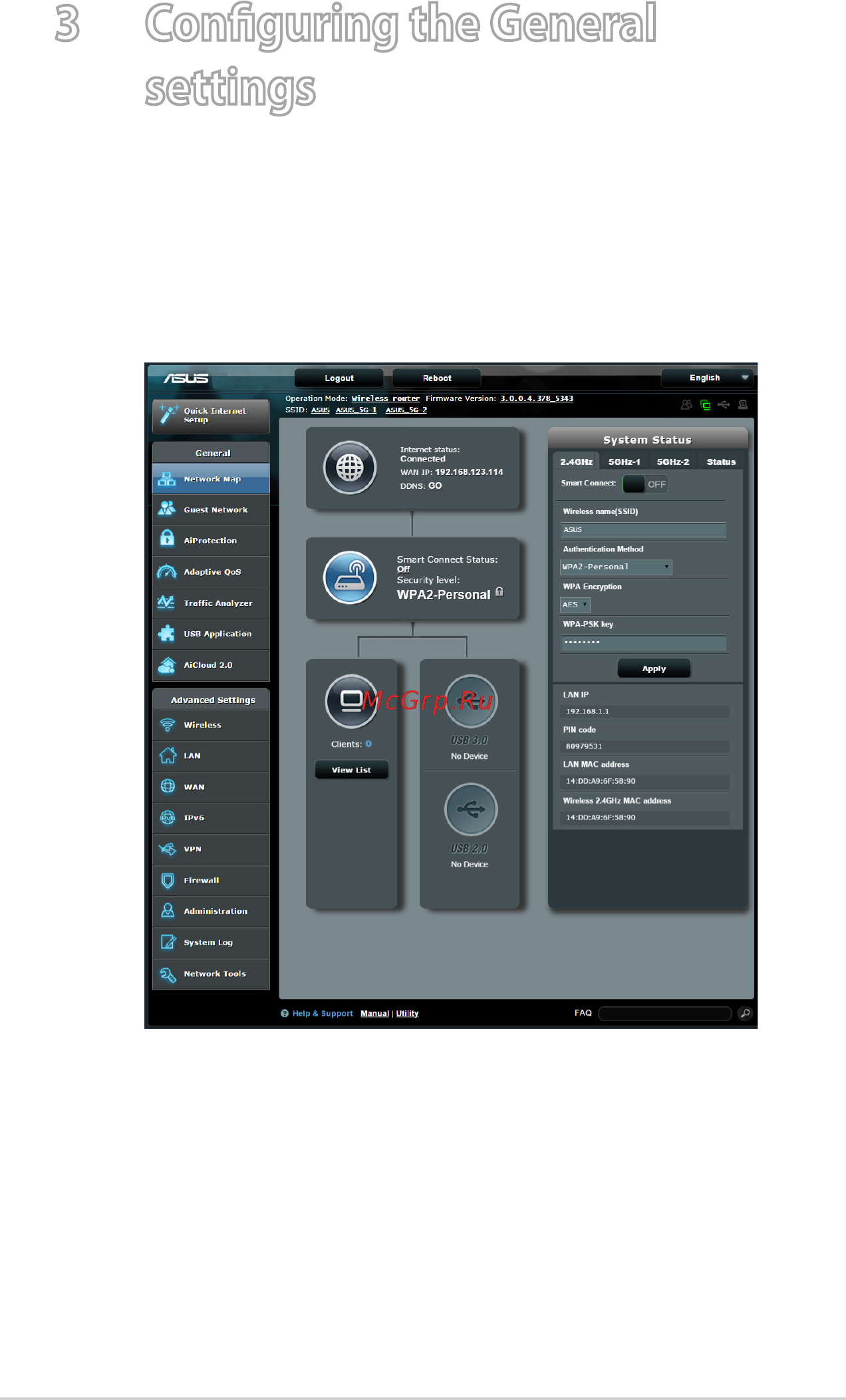

Network Map allows you to conﬁgure your network’s security

settings, manage your network clients, and monitor your USB

device.
