Asus rt-ac5300 [29/142] Aiprotection

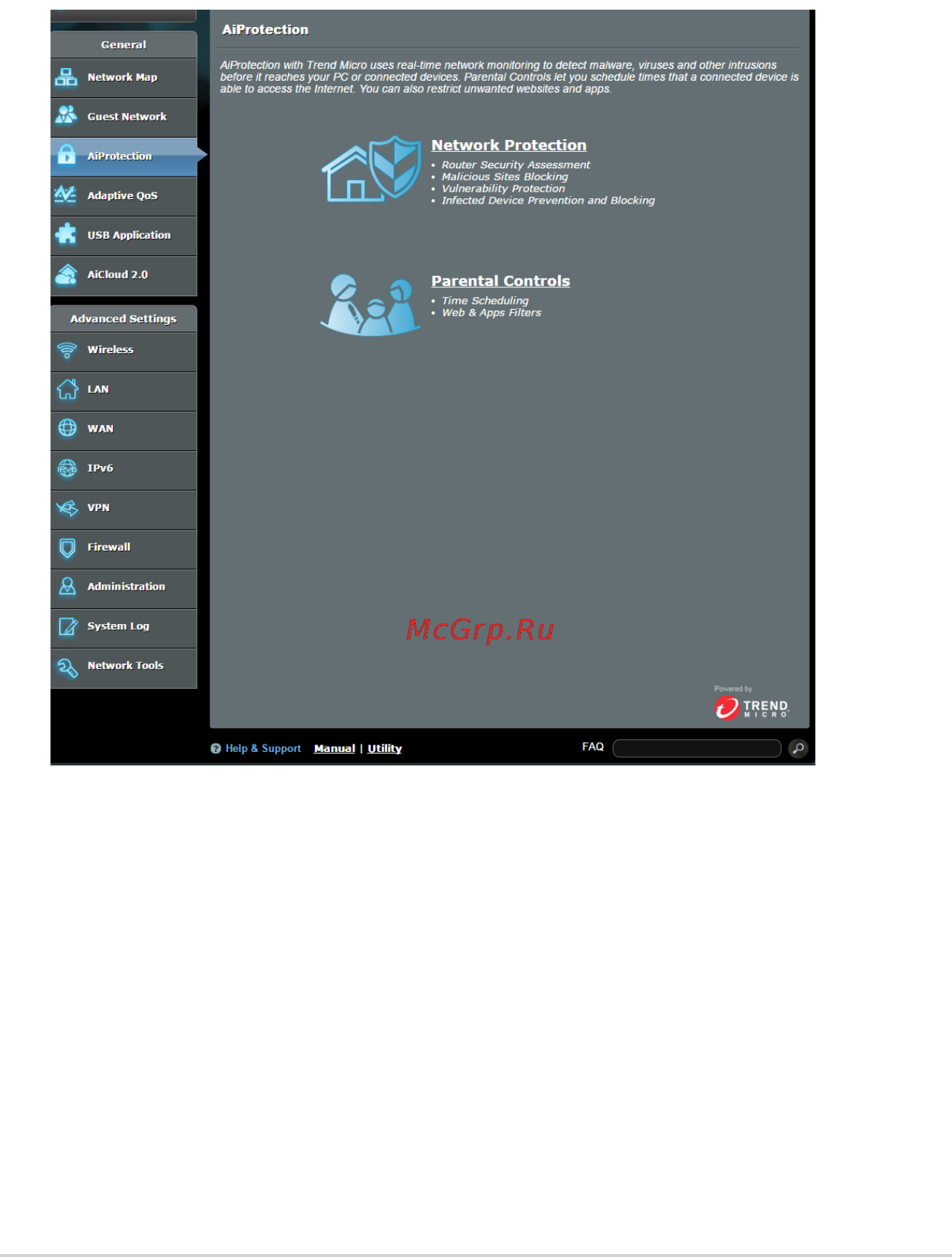

3.3 AiProtection

AiProtection provides real-time monitoring that detects malware,

spyware, and unwanted access. It also ﬁlters unwanted websites

and apps and allows you to schedule a time that a connected

device is able to access the Internet.
