Asus rt-ac5300 [23/142] Managing your network clients

3.1.2 Managing your network clients

To manage your network clients:

1. From the navigation panel, go to General > Network Map

tab.

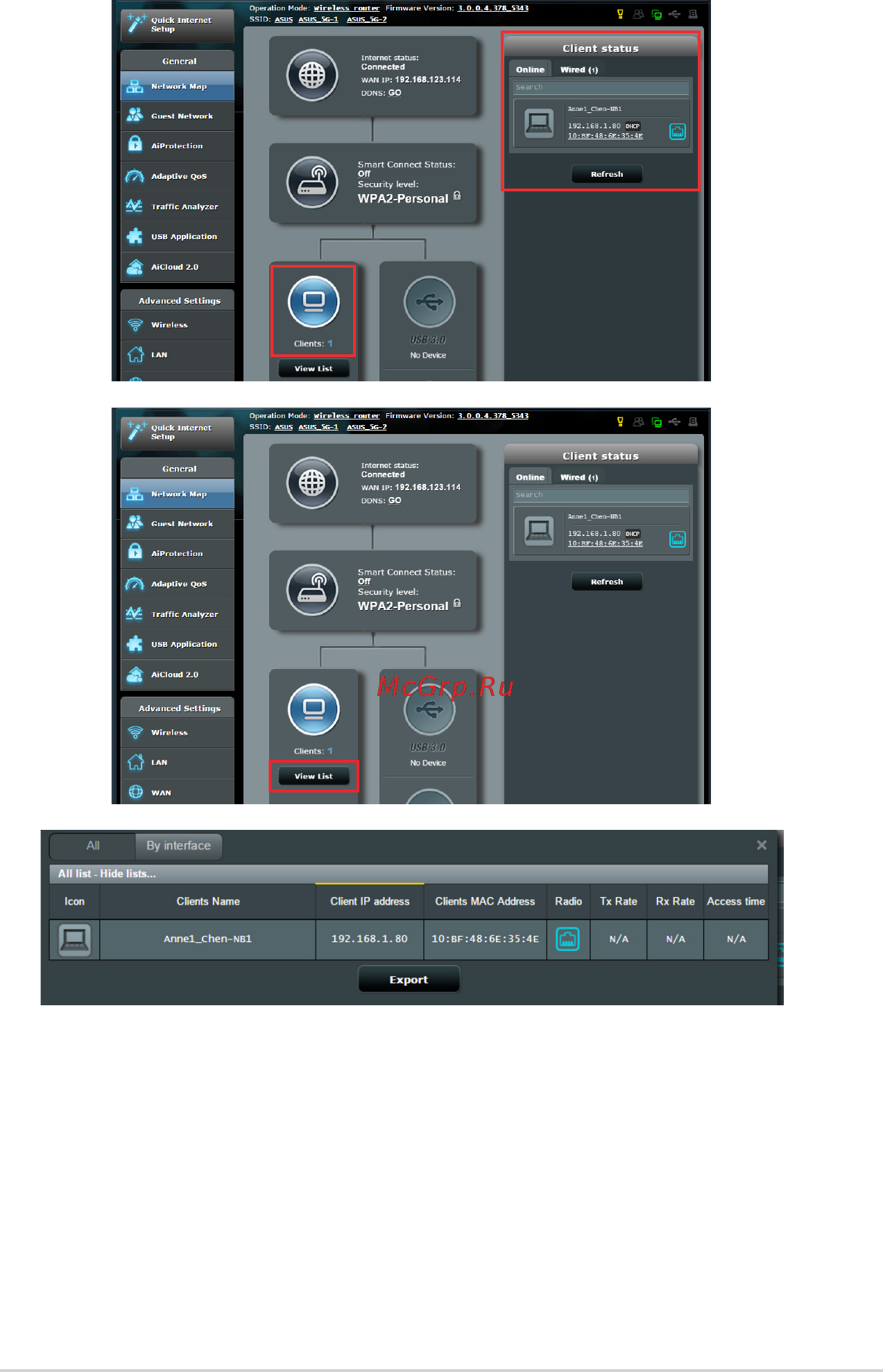

2. On the Network Map screen, select the Clients icon to

display your network client’s information.

3. Click View List below the Clients icon to display all the clients.

4. To block a client’s access to your network, select the client and

click the open lock icon.
