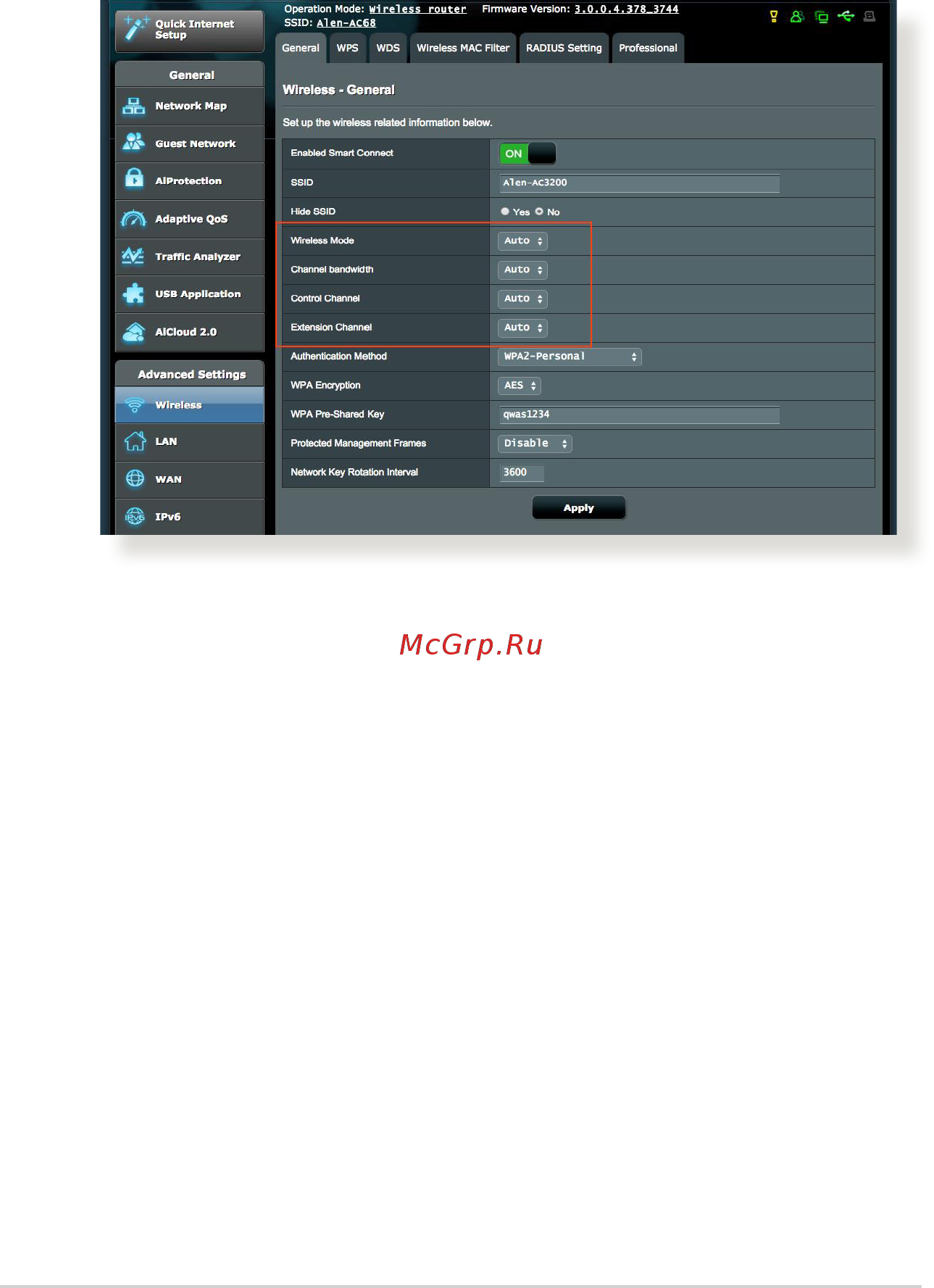

When Smart Connect is enabled, your router will automatically

adjust the wireless mode, channel bandwidth, control bandwidth

and extension channel settings according to your networking

conditions. You can check the changes from the Wireless screen.
