ASSEMBLY

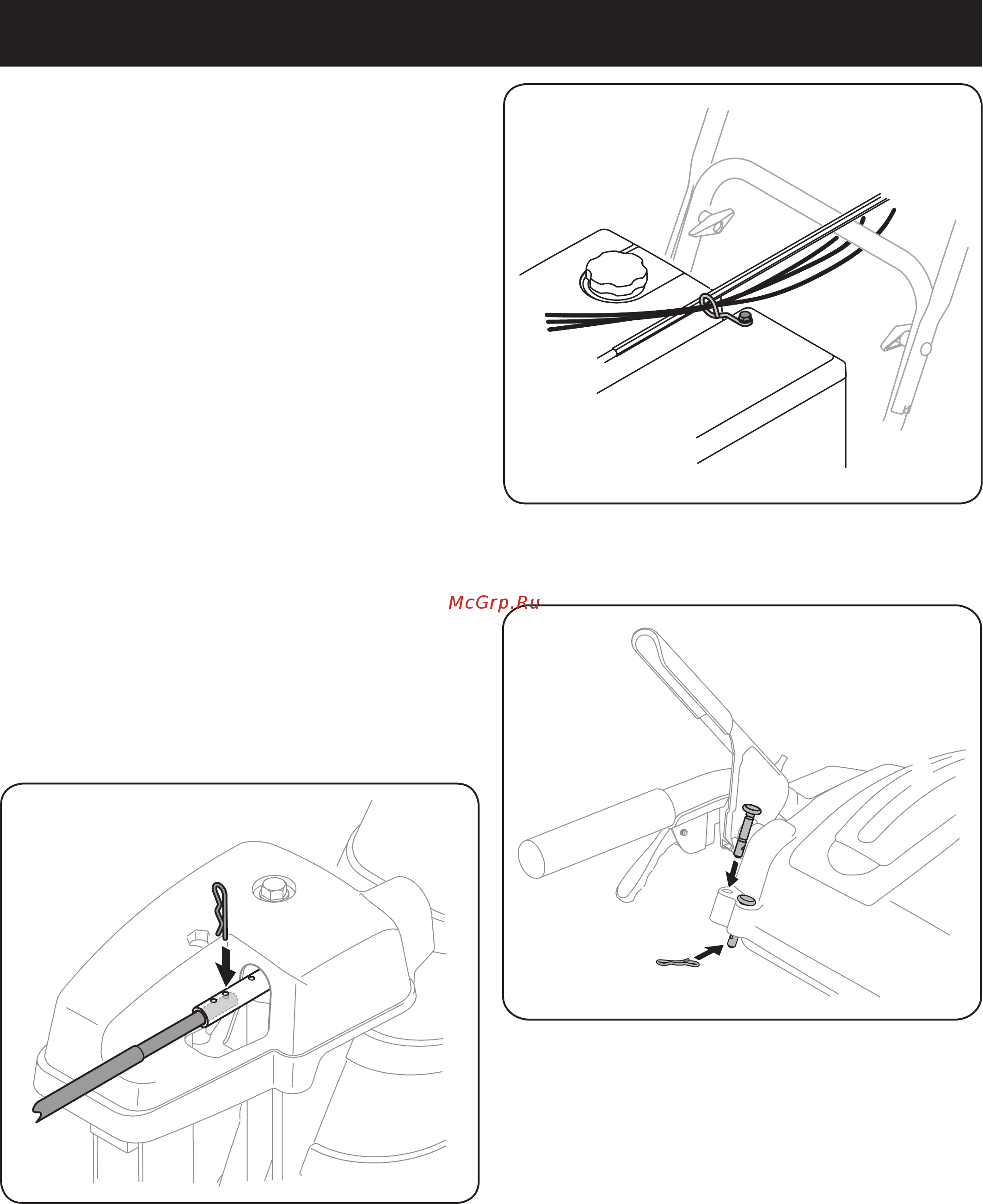

7. Push the chute control rod toward the control panel until the hole

in the rod lines up with the middle hole in the chute control input

and insert the cotter pin. See Figure 8.

NOTE: There is a reference hole provided at rear end of control rod to

help know when holes are vertical.

NOTE: The hole furthest from the chute control head is used to

achieve further engagement of the chute control rod into the input shaft

if required. Refer to the Maintenance & Adjustments section for Chute

Control Rod adjustment.

The hole closest to the chute control head is used for manual

movement of the chute assembly if required. Refer to the Controls &

Features section.

8. Check that the cables are properly routed through the cable guide

on top of the engine. See Figure 9.

NOTE: For smoothest operation, the cables should all be to the left of

the hex rod.

9. The extension cord for the electric starter is fastened with a cable

tie to the rear of the auger housing for shipping purposes. Cut the

cable tie and remove cord before operating the unit.

SET-UP

Shear Pins

Holes are located in the handle panel for convenient shear pin storage.

See Figure 10. Refer to the Operation section for more information

regarding shear pin replacement.

Figure 10

Figure 8

Figure 9
