Craftsman 88396 [8/68] Assembly

ASSEMBLY

NOTE: References to right or left side of the snow thrower are

determined from behind the unit in the operating position (standing

directly behind the snow thrower, facing the handle panel).

REMOVING FROM CARTON

1. Cut the corners of the carton and lay the sides flat on the ground.

Remove and discard all packing inserts.

2. Move the snow thrower out of the carton.

3. Make certain the carton has been completely emptied before

discarding it.

ASSEMBLY

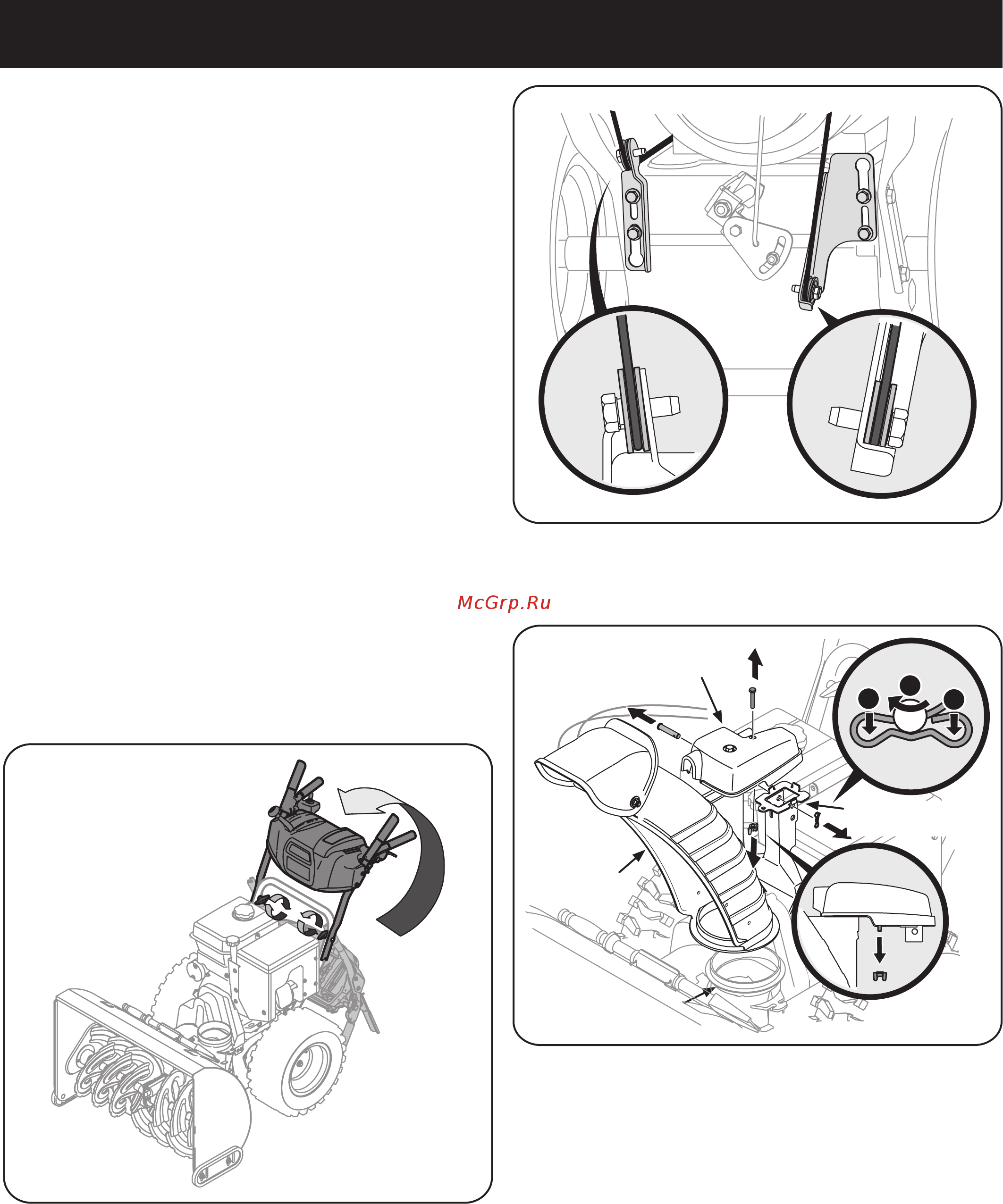

1. Observe the lower rear area of the snow thrower to be sure both

cables are aligned with roller guides before pivoting the handle

upward.

a. Place the shift lever in the F6 position.

b. Pull up and back on upper handle as shown in Figure 1. As

you are raising the handle upward, make sure that both ends

of the center cable are positioned properly in the brackets.

See Figure 2. Align upper handle with the lower handle.

c. Tighten hand knobs securing upper handle to lower handle.

Remove and discard any rubber bands, if present. They are

for packaging purposes only.

2. Remove cotter pin, wing nut, and hex screw from chute control

head and clevis pin and bow-tie cotter pin from chute support

bracket. See Figure 3.

Figure 1

Figure 2

Figure 3

Chute Base

Chute Control Head

Chute

Chute Support

Bracket
