15
Catalyst 2960-S Switch Getting Started Guide
OL-19793-02
Catalyst 2960-S Switch Getting Started Guide

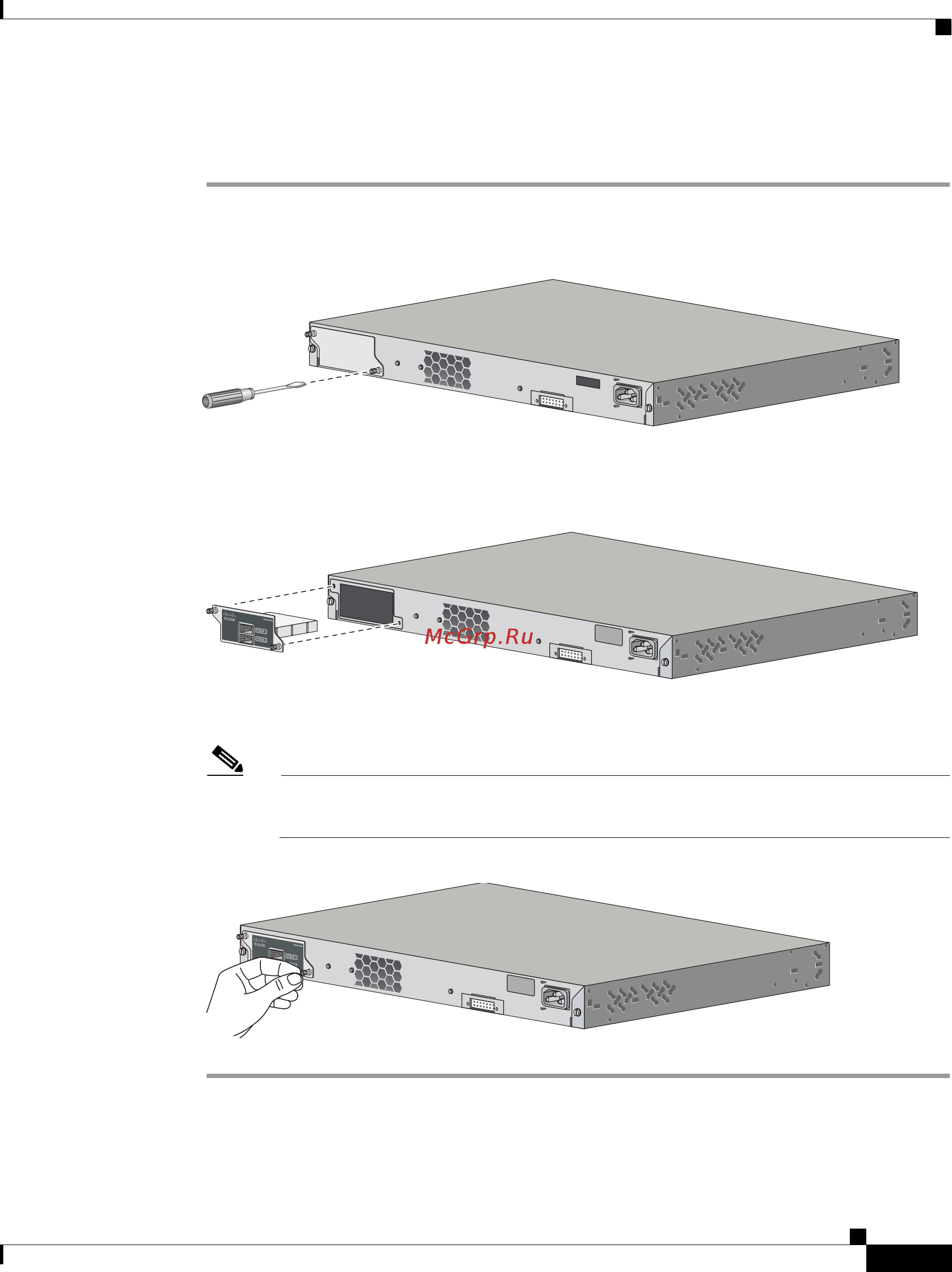

Installing the FlexStack Module
Step 1 Use a flat-blade screwdriver to remove the FlexStack module blank cover on the
switch back panel.
Step 2 Grasp the FlexStack module on the sides, and insert it into the module slot.
Step 3 Secure the screws tightly on each side of the module.
Note Make sure the screws are finger-tight to avoid overtightening of the
screws.
206255
2062
32
RATING
100-240~
12-6A, 50-60Hz
RATING
100-240~
12-6A, 50-60Hz
206239
