Catalyst 2960-S Switch Getting Started Guide
22
Catalyst 2960-S Switch Getting Started Guide
OL-19793-02

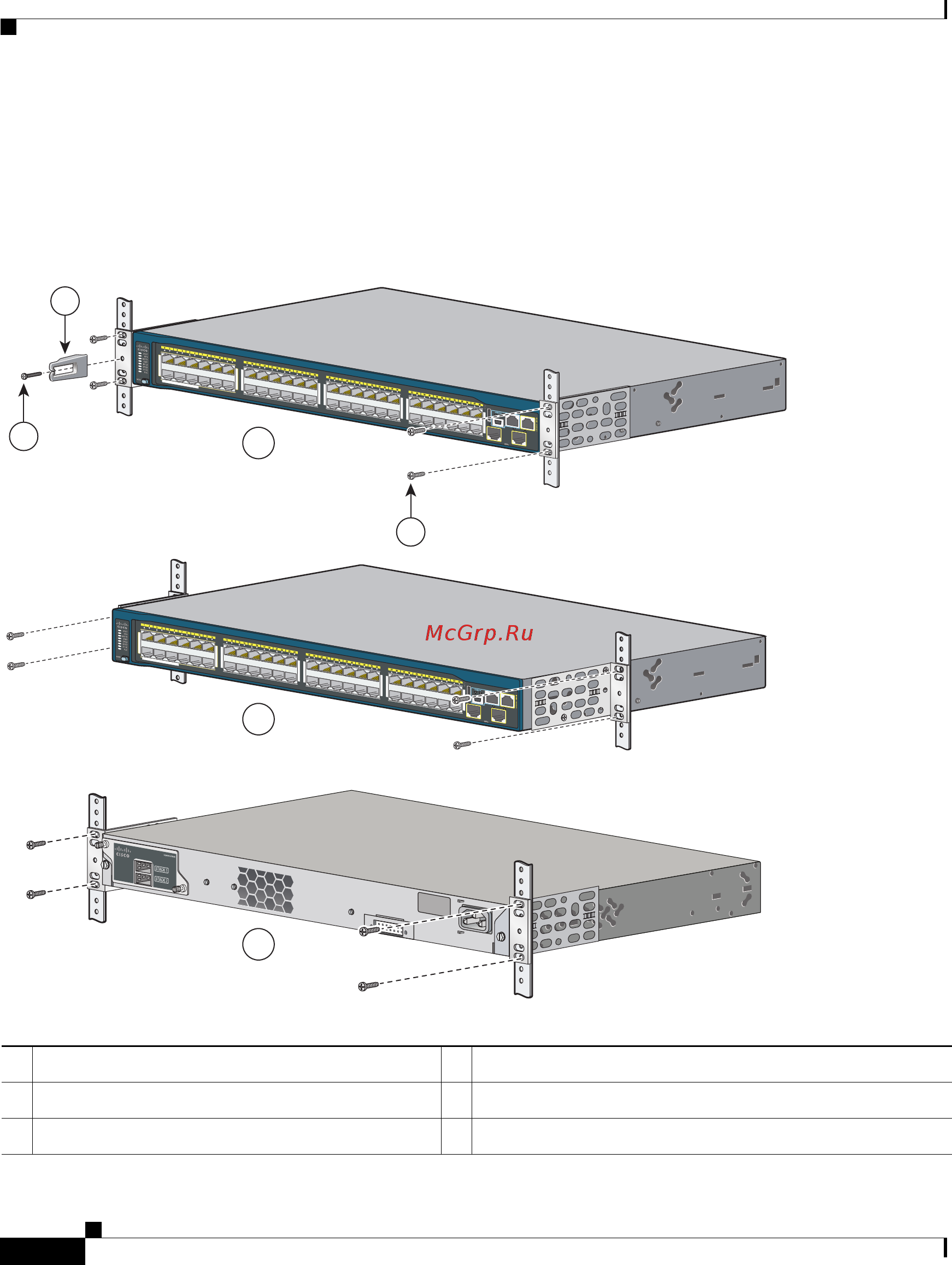

Rack-Mount the Switch
Use the four number-12 Phillips machine screws to attach the brackets to the rack.
Use the black Phillips machine screw to attach the cable guide to the left or right
bracket.
.
1 Cable guide 4 Number-12 Phillips pan-head screws (48-0523-01)
2 Black Phillips machine screw (48-0654-01) 5 Mid-mounting position
3 Front-mounting position 6 Rear-mounting position
11X
2X
1X
11X
14X
12X
13X
23X
24X
25X
26X
37X
39X
36X
38X
47X
48X
1
2
11X
2X
1X
11X
14X
12X
13X
23X
24X
25X
26X
37X
39X
36X
38X
47X
48X
1
2
POWER
OVER
ETHERNET 740W
POWER
OVER
ETHERNET 740W
Catalyst 2960-S
Series
PoE+ 10G
Catalyst 2960-S
Series
PoE+ 10G
1
2
206600
RATING
100-240~
12-6A, 50-60Hz
3
4
5
6
