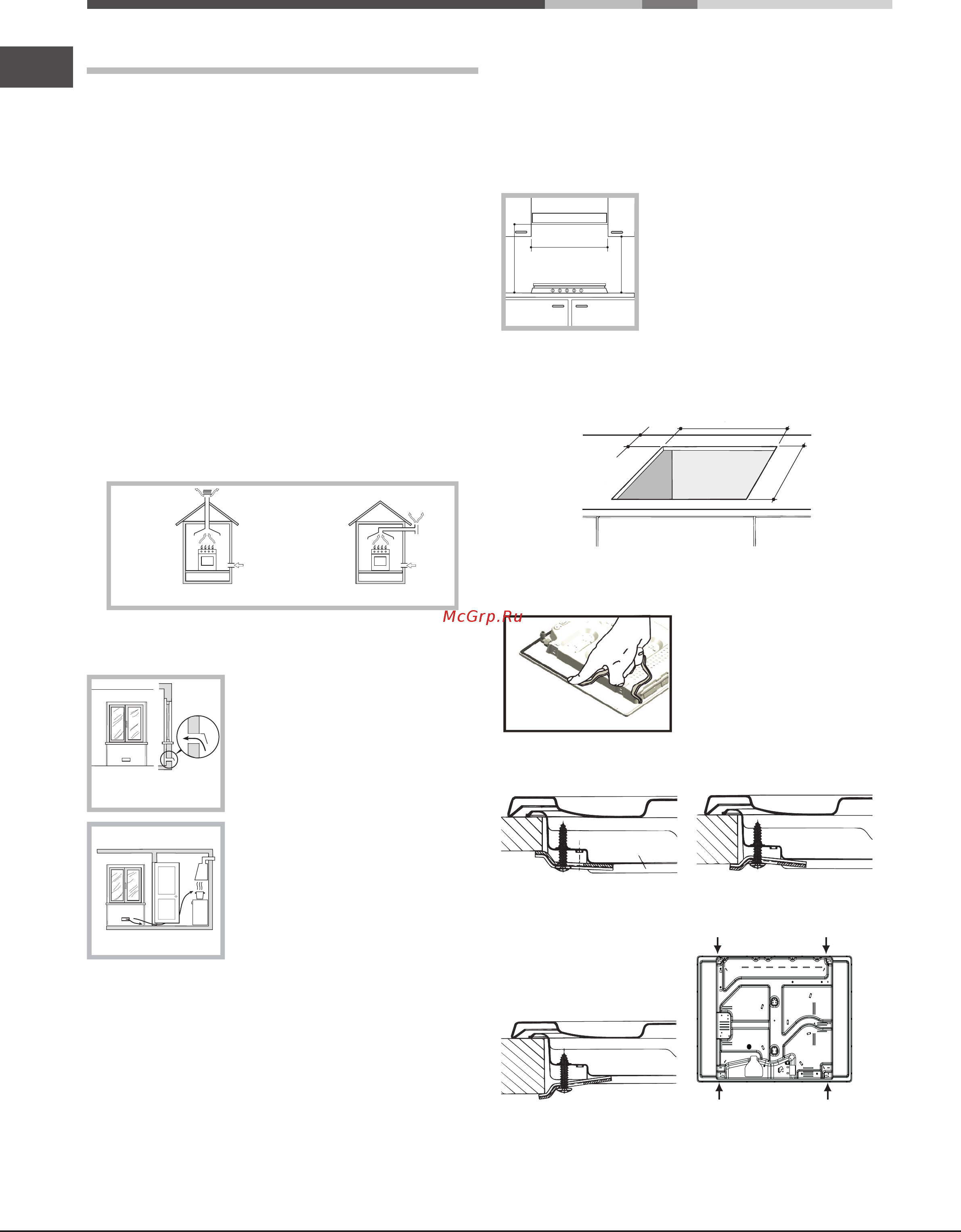

Hotpoint-Ariston pcn 642 t/ix/har [6/24] Installation

Installation

! Before operating your new appliance please read this instruction booklet

carefully. It contains important information for safe use, installation and care

of the appliance.

! Please keep these operating instructions for future reference. Pass them on

to possible new owners of the appliance.

Positioning

! Keep packaging material out of the reach of children. It can become a choking

or suffocation hazard (see Precautions and tips).

! The appliance must be installed by a qualied professional according to the

instructions provided. Incorrect installation may cause harm to people and

animals or may damage property.

! This unit may be installed and used only in permanently ventilated rooms

in accordance with current national regulations. The following requirements

must be observed:

• The room must be equipped with an air extraction system that expels

any combustion fumes. This may consist of a hood or an electric fan that

automatically starts each time the appliance is switched on.

In a chimney stack or branched flue.

(exclusively for cooking appliances)

Directly to

the Outside

• The room must also allow proper air circulation, as air is needed for

combustion to occur normally. The ow of air must not be less than 2 m

per kW of installed power.

The air circulation system may take air directly

from the outside by means of a pipe with an

inner cross section of at least 100 cm

; the

opening must not be vulnerable to any type

of blockages.

The system can also provide the air needed for

combustion indirectly, i.e. from adjacent rooms

tted with air circulation tubes as described

above. However, these rooms must not be

communal rooms, bedrooms or rooms that

may present a re hazard.

• Intensive and prolonged use of the appliance may necessitate

supplemental ventilation, e.g. opening a window or increasing the power

of the air intake system (if present).

• Liquid petroleum gas sinks to the oor as it is heavier than air. Therefore,

rooms containing LPG cylinders must also be equipped with vents to allow

gas to escape in the event of a leak. As a result LPG cylinders, whether

partially or completely full, must not be installed or stored in rooms or

storage areas that are below ground level (cellars, etc.). It is advisable to

keep only the cylinder being used in the room, positioned so that it is not

subject to heat produced by external sources (ovens, replaces, stoves,

etc. ) which could raise the temperature of the cylinder above 50°C.

Examples of

ventilation holes

for comburant air.

Enlarging the ventilation slot

between window and floor.

Adjacent

Room

Room to be

Vented

Fitting the appliance

The following precautions must be taken when installing the hob:

• Kitchen cabinets adjacent to the appliance and taller than the top of the

hob must be at least 200 mm from the edge of the hob.

• Hoods must be installed according to their relative installation instruction

manuals and at a minimum distance of 650 mm from the hob (see gure).

• Place the wall cabinets adjacent to the hood at a minimum height of 420

mm from the hob (see gure).

If the hob is installed beneath a wall cabinet,

the latter must be situated at a minimum of 700

mm above the hob.

• The installation cavity should have the dimensions indicated in the gure.

Fastening hooks are provided, allowing you to fasten the hob to tops that

are between 20 and 40 mm thick. To ensure the hob is securely fastened

to the top, we recommend you use all the hooks provided.

555 mm

55 mm

475 mm

Before the installation remove the grids and burners from the hob and turn it

upside down, making sure you don’t damage the thermocouples and spark

plugs.

Apply the seals that come with the

appliance along the outer edges of

the hob to prevent any passage of air,

humidity and water (see Figure).

For proper application make sure the

surfaces to be sealed are clean, dry and

free of any grease/oil.

Hook fastening diagram

Hooking position for top H=20mm Hooking position for top H=30mm

Front

Hooking position for top H=40mm Back

! Use the hooks contained in the “accessory pack”.

600mm min.

420mm min.

650mm min.
