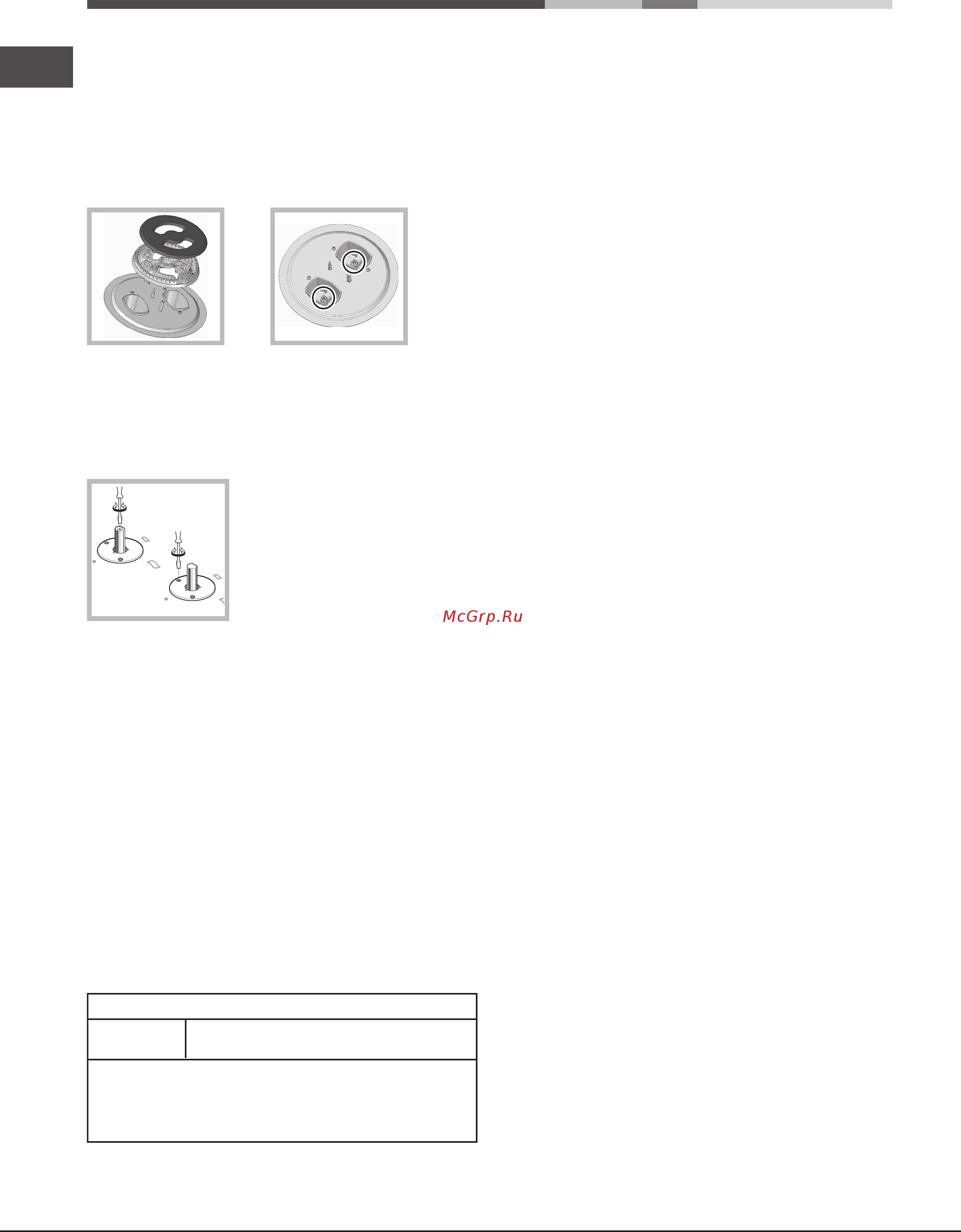

Replacing the Triple ring burner nozzles

1. Remove the pan supports and lift the burners out of their housing. The

burner consists of two separate parts (see pictures).

2. Unscrew the nozzles using a 7 mm socket spanner. Replace the nozzles

with models that are congured for use with the new type of gas (see Table

1). The two nozzles have the same hole diameter.

3. Replace all the components by completing the above operations in reverse

order.

• Adjusting the burners’ primary air

Does not require adjusting.

• Setting the burners to minimum

1. Turn the tap to the low ame position.

2. Remove the knob and adjust the adjustment

screw, which is positioned in or next to the tap

pin, until the ame is small but steady.

3. Having adjusted the ame to the required low setting, while the burner is

alight, quickly change the position of the knob from minimum to maximum

and vice versa several times, checking that the ame does not go out.

4. Some appliances have a safety device (thermocouple) tted. If the device

fails to work when the burners are set to the low ame setting, increase

this low ame setting using the adjusting screw.

5. Once the adjustment has been made, replace the seals on the by-passes

using sealing wax or a similar substance.

! If the appliance is connected to liquid gas, the regulation screw must be

fastened as tightly as possible.

! Once this procedure is nished, replace the old rating sticker with one

indicating the new type of gas used. Stickers are available from any of our

Service Centres.

! Should the gas pressure used be different (or vary slightly) from the

recommended pressure, a suitable pressure regulator must be tted to the

inlet pipe (in order to comply with current national regulations).

Electrical

connections

DATA PLATE

ECODESIGN

see data plate

This appliance conforms to the EU Regulation no. 66/2014

implementing Directive 2009/125/EC.

standard EN 30-2-1
