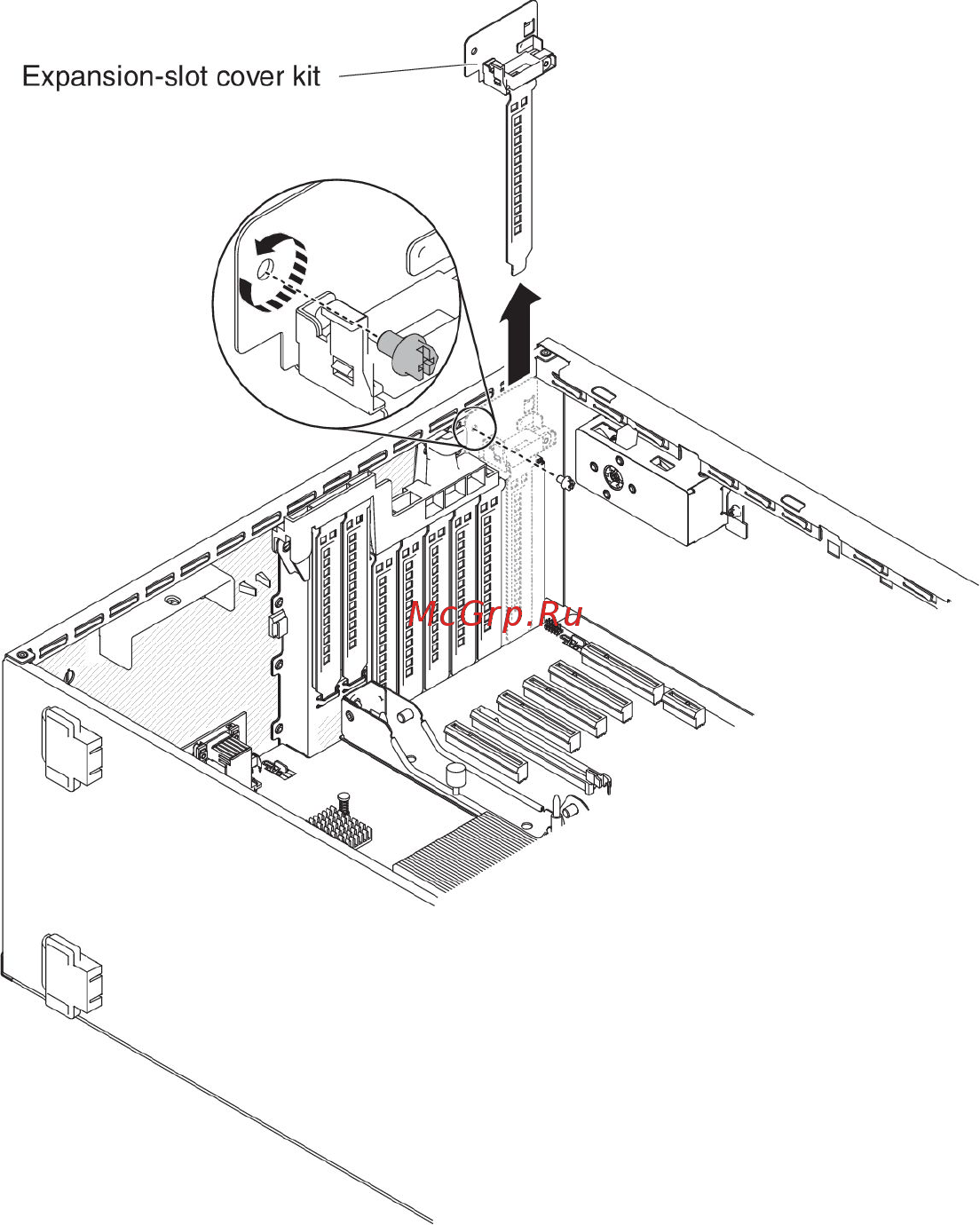

8. Remove the expansion-slot cover kit in PCI slot 1 and save it for future use.

9. Press the PCI-X bracket firmly into PCI slot 1.

Attention: Incomplete insertion might cause damage to the system board or

the adapter.

10. Make sure the latch on the side of the PCI-X bracket is secured to the rear of

the server chassis.

Chapter 2. Installing optional devices 85
