![IBM x3500 m4, 7383e5g [94/170] Installing an optional tape drive](/img/pdf.png)
IBM x3500 m4, 7383e5g [94/170] Installing an optional tape drive
![IBM x3500 m4, 7383e5g [94/170] Installing an optional tape drive](/views2/1219893/page94/bg5e.png)
10. Follow the instructions that come with the drive to set jumpers or switches, if
there is any.
Note: You might find it easier to install the new drive from the front and then
attach the cables.

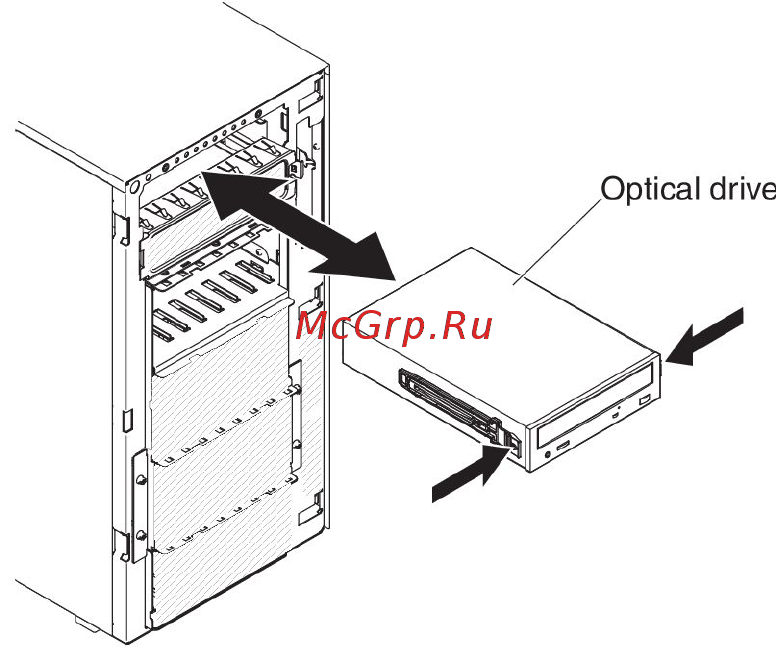

11. Align the rails on the DVD drive with the guides in the drive bay; then, slide the
DVD drive into the drive bay until the rails click into place.
12. Connect power and signal cables to the drive and the connectors on the
system board (see “Internal cable routing and connectors” on page 40 for more
information).
If you have other devices to install or remove, do so now. Otherwise, go to
“Completing the installation” on page 109.
Installing an optional tape drive
To install an optional full-height tape drive, complete the following steps:
1. Read the safety information that begins on page vii and “Installation guidelines”
on page 37.
2. Turn off the server and peripheral devices, and disconnect the power cords
and all external cables.
3. Turn off the server and peripheral devices, and disconnect the power cords
and all external cables.
4. Unlock and remove the left-side cover (see “Removing the left-side cover” on
page 60).
5. Open the bezel (see “Opening the bezel media door” on page 58).
6. Remove the air baffle if installed (see “Removing the air baffle” on page 60).
7. Remove the fan cage assembly (see “Removing the fan cage assembly” on
page 61).
8. Remove the EMC shields from the drive bay, if installed.
9. Touch the static-protective package that contains the tape drive to any
unpainted metal surface on the server; then, remove the tape drive from the
package.
10. Install the blue rails on the tape drive.
11. Follow the instructions that come with the drive to set jumpers or switches, if
there is any.
Note: You might find it easier to install the new drive from the front and then
attach the cables.
76 IBM System x3500 M4 Type 7383: Installation and User’s Guide
