IBM x3500 m4, 7383e5g [61/170] Tape drive cable connection

Tape drive cable connection

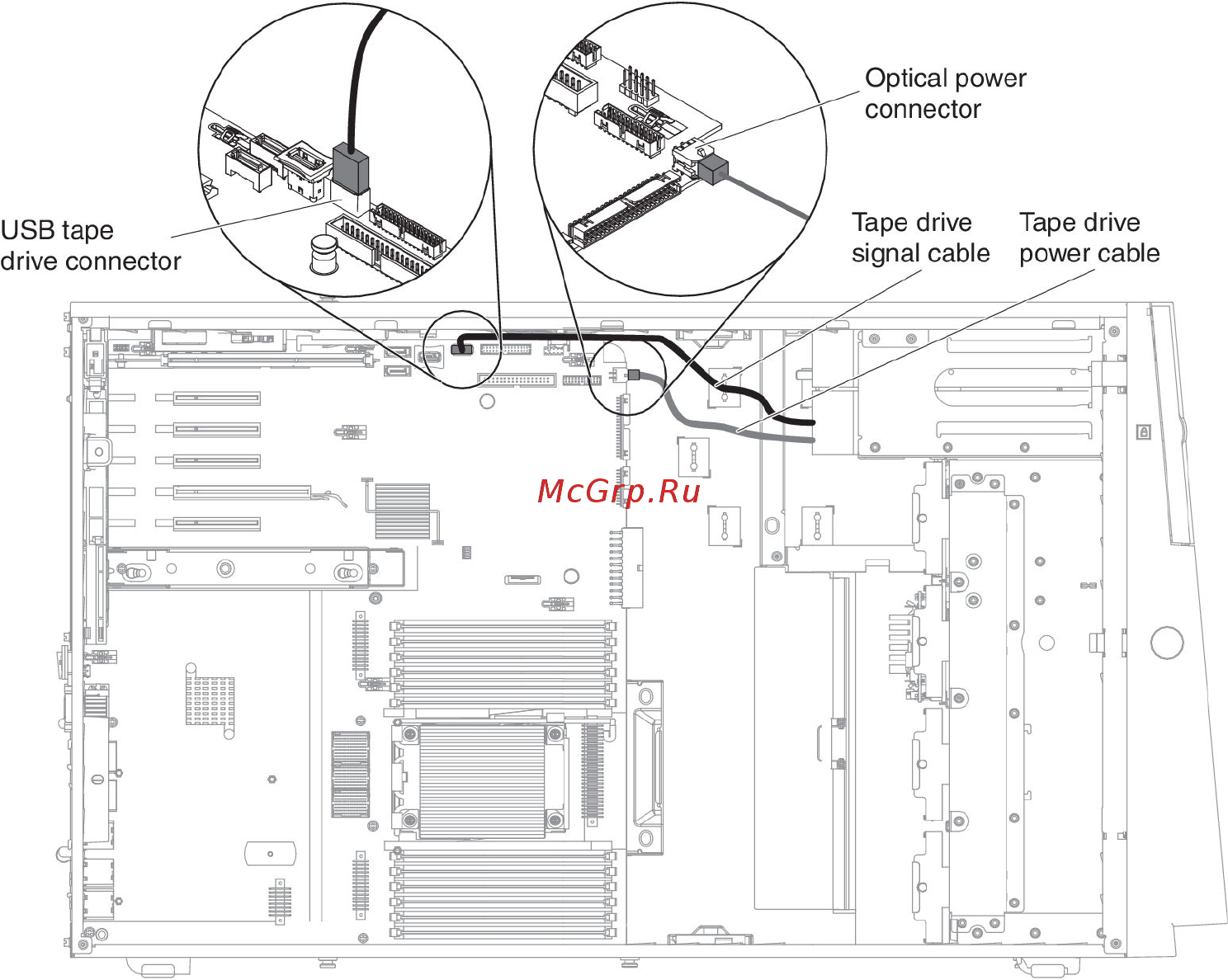

You can install either a USB or SATA tape drive in the server. The following

illustration shows the internal cable routing and connectors for the USB tape drive.

It also shows the internal power cable for the optical drives.

Chapter 2. Installing optional devices 43
