IBM x3500 m4, 7383e5g [42/170] Power supply leds

Power-supply LEDs

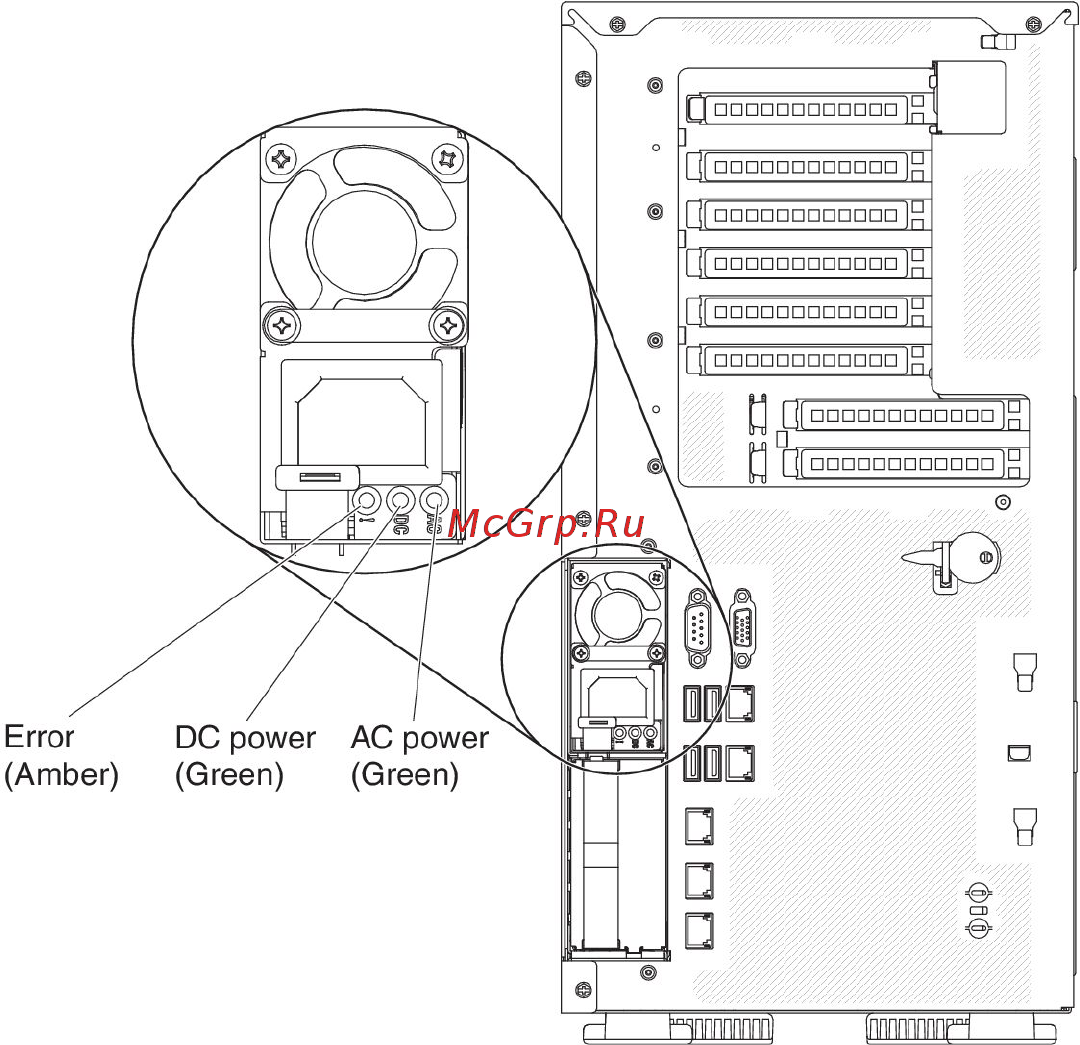

The following illustration shows the location of the power-supply LEDs on the rear

of the server. See the Problem Determination and Service Guide for additional

information about solving power-supply problems.

24 IBM System x3500 M4 Type 7383: Installation and User’s Guide
