13
Reference

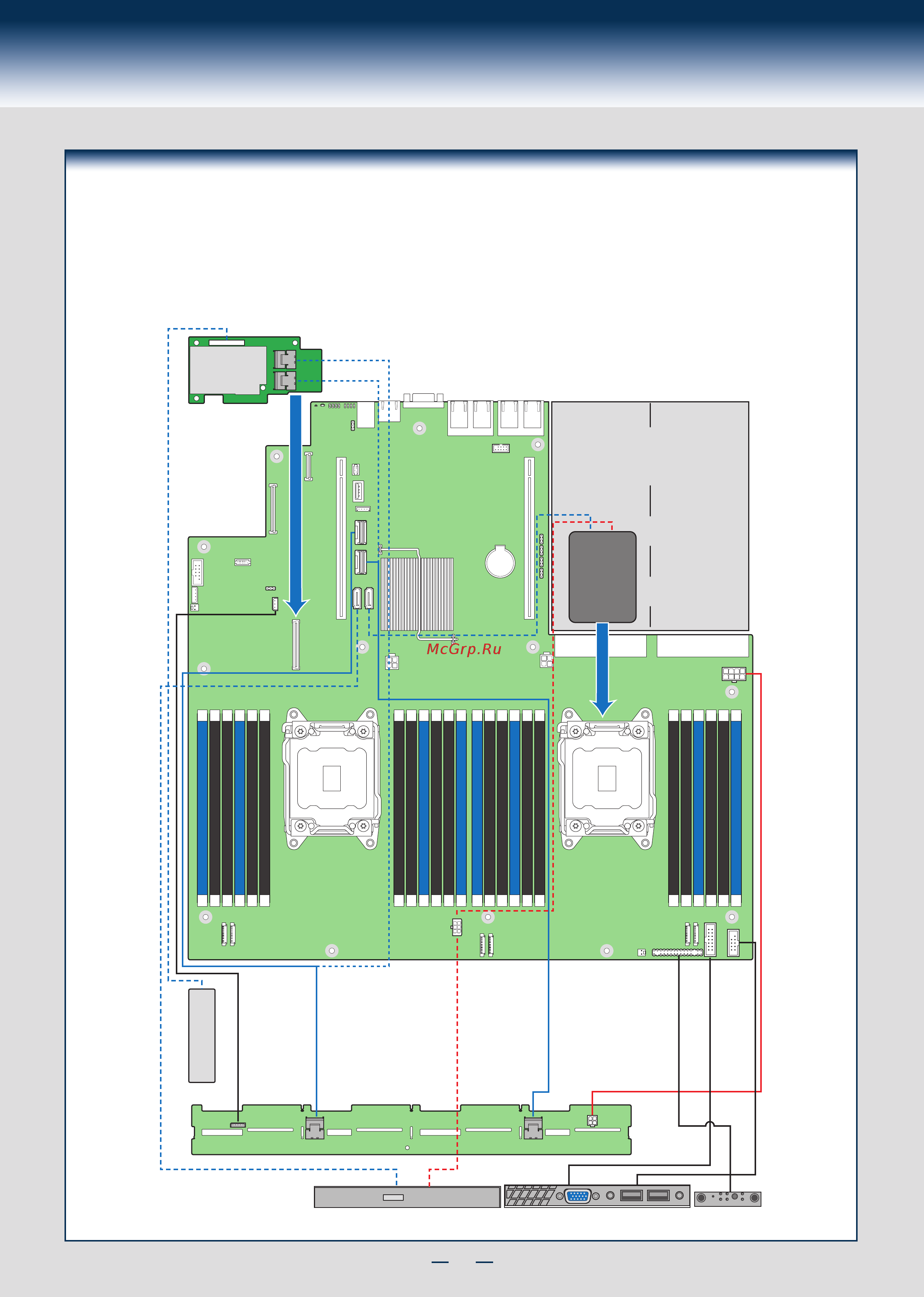

System Cabling Diagram
NOTES: To activate the port SCU1 (4-7) on the server board, a proper Intel
®
RAID C600 Upgrade Key must be installed. For instructions, see Intel
®
RAID C600
Upgrade Key Installation Guide.
A second SSD is supported when the optical drive is NOT in use. For cable routing, please refer to Page 14.
For system with 8 x 3.5” hard drive bay:
8 x 3.5" HSBP
Server
Board
Optical Drive
BBU
Intel
®
Integrated
RAID Module
Front Panel
I
2
C
Front Panel Video
Front Panel USB
Power
Supply
SSD
Mount on Air Duct
