MSI b150m bazooka plus [3/77] Quick start
![MSI b150m bazooka plus [3/77] Quick start](/views2/1221728/page3/bg3.png)
3

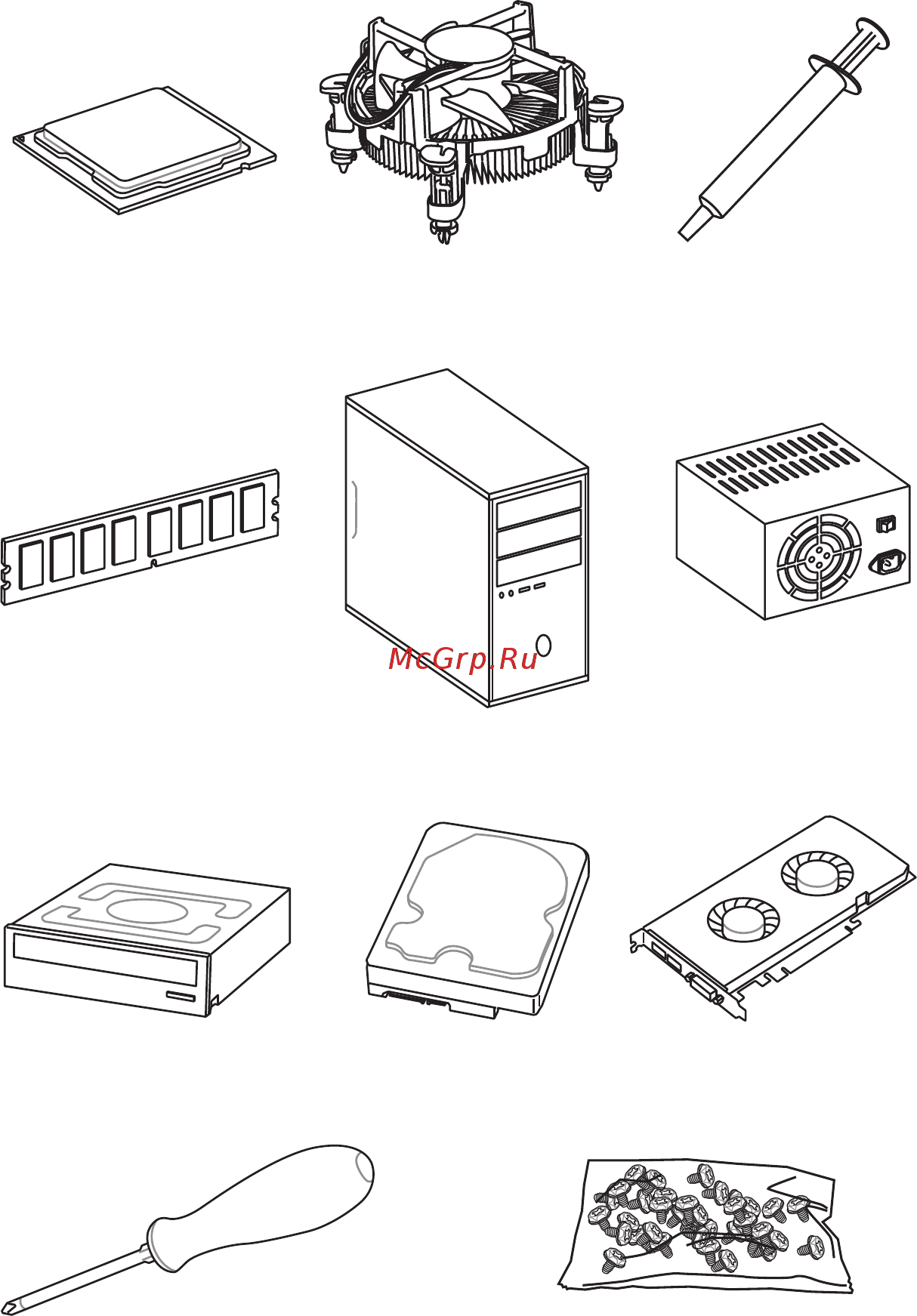

Quick Start
Intel
®
LGA 1151 CPU
DDR4 Memory
Graphics Card
SATA Hard Disk Drive
SATA DVD Drive
A Package of Screws
Phillips Screwdriver
Chassis
Power Supply Unit
CPU Fan Thermal Paste
Quick Start
Preparing Tools and Components
