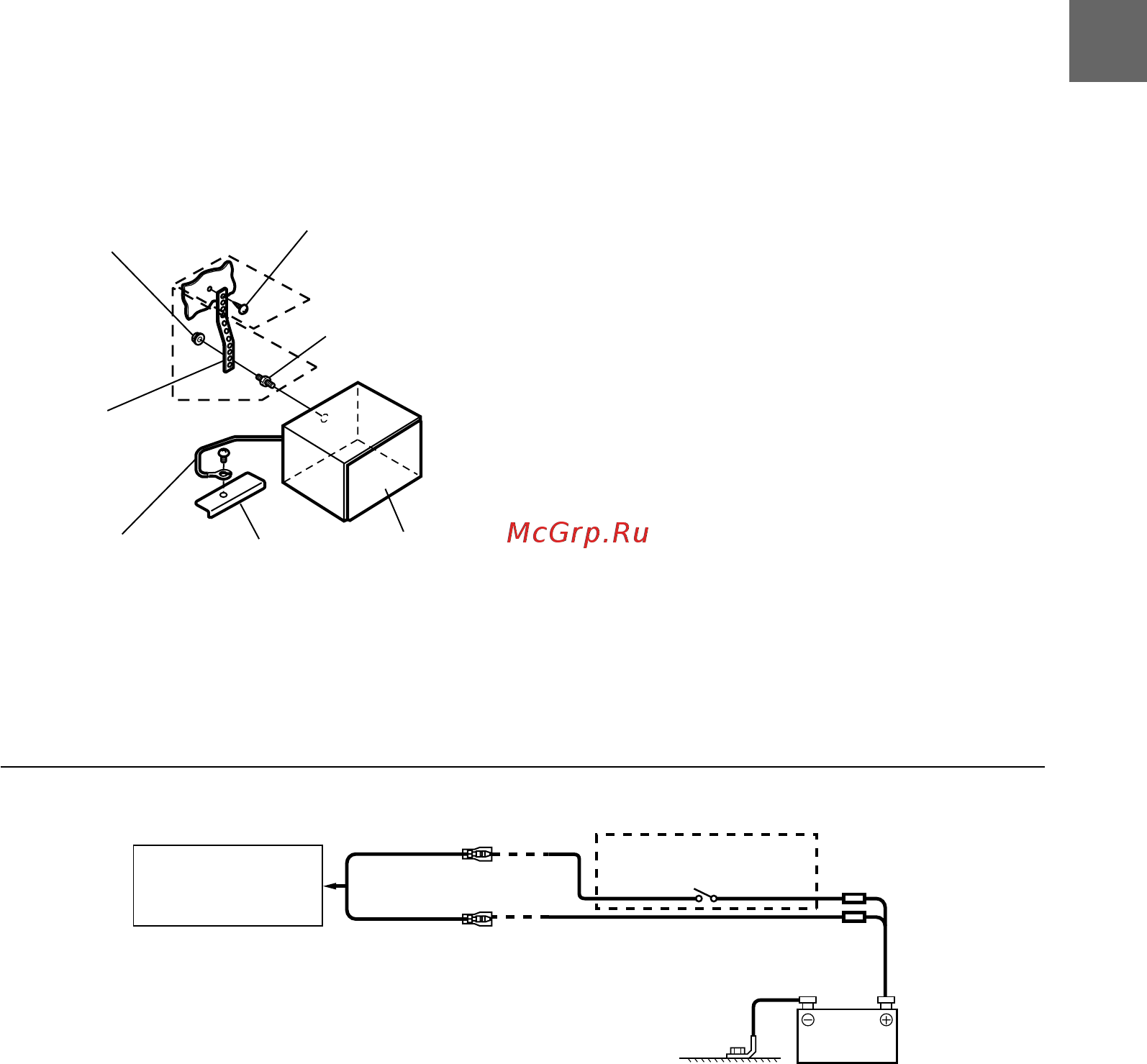

4 When your vehicle has the Bracket, mount
the long hex bolt onto the rear panel of the
IVE-W585BT and put the Rubber Cap on
the hex bolt. If your vehicle does not have
the Mounting Support, reinforce the head
unit with the metal mounting strap (not
supplied). Secure the ground lead of the
unit to a clean metal spot using a screw (*1)
already attached to the vehicles chassis.
Connect all the leads of the IVE-W585BT
according to details described in the
Connections section.
This unit
Screw
Chassis
*
1
*
2
Hex Nut (M5)
Bolt Stud
Metal
Mounting
Strap
Ground Lead
For the screw marked “*2,” use an appropriate screw for
the chosen mounting location.
5 Slide the IVE-W585BT into the dashboard
until it clicks. This ensures that the unit is
properly locked and will not accidentally
come out from the dashboard.
Connection Diagram of SPST Switch (sold separately)
(If the ACC power supply is not available)
SPST SW (Optional)
IVE-W585BT
ACC
(Red)
BATTERY
(Yellow)
FUSE (5A)
(Optional)
FUSE (20A)
(Optional)
Battery
If your vehicle has no ACC power supply, add an SPST (Single-Pole, Single-Throw) switch (sold separately) and fuse (sold
separately).
The diagram and the fuse amperage shown above are in the case when IVE-W585BT is used individually.
If the switched power (ignition) lead of the IVE-W585BT is connected directly to the positive (+) post of the vehicles
battery, the IVE-W585BT draws some current (several hundred milliamperes) even when its switch is placed in the OFF
position, and the battery may be discharged.
