Positioning the ZOTAC ZBOX Blu-ray

• Do not cover or block the ventilation holes on ZOTAC ZBOX Blu-ray. To ensure

proper operation and reliability, leave aproximately 4 inches (10 cm) of spacing in

front of the ventilation holes.

• ZOTAC ZBOX Blu-ray mini-PC systems provide ample expansion in a miniature

form factor, please use connectors and cables that are appropriate in size to avoid

interference.

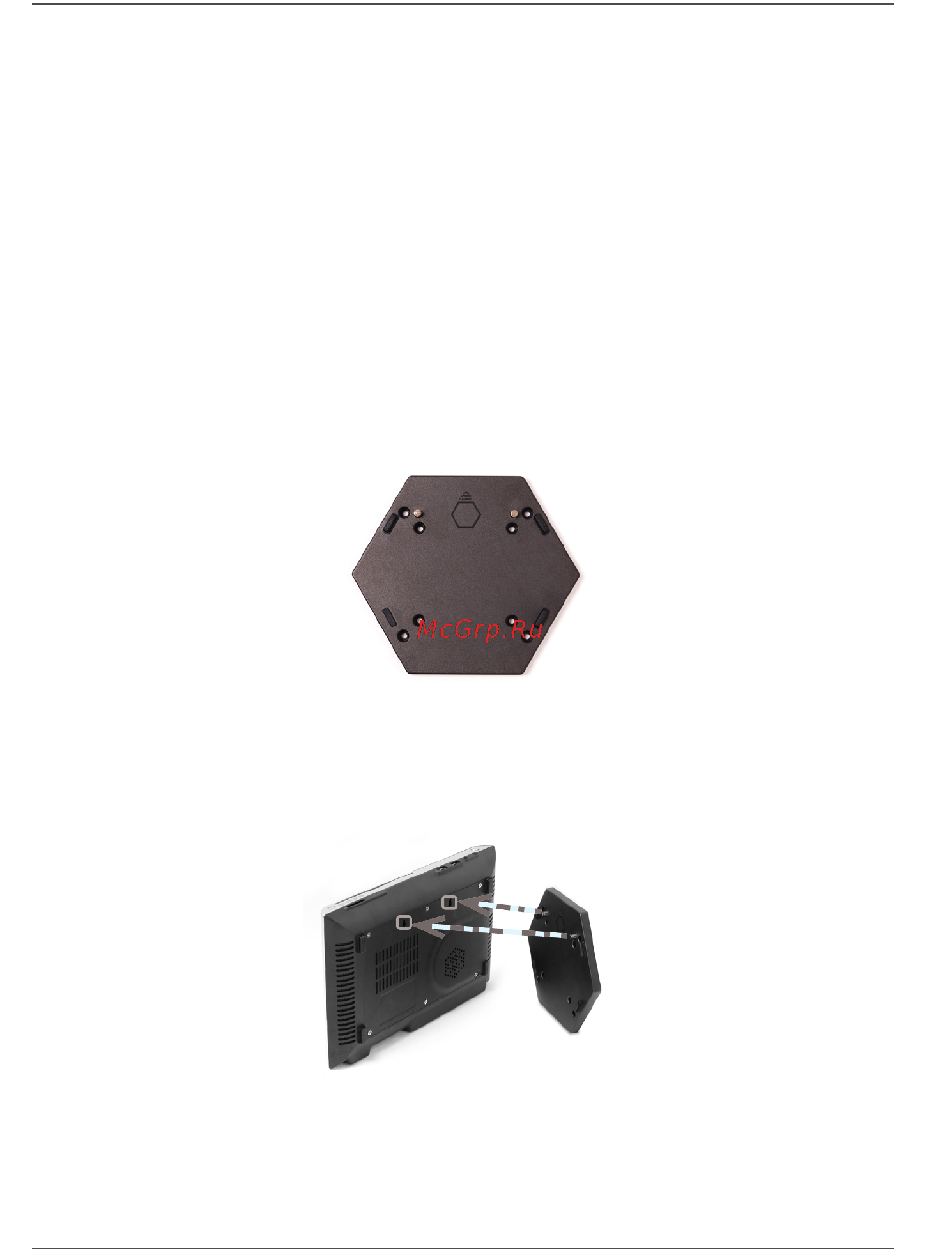

Mounting the ZOTAC ZBOX Blu-ray to a wall

The ZOTAC ZBOX Blu-ray is wall-mountable using the included VESA mount.

1. Secure the VESA mount to the wall using screws (not included).

Note 1: Always secure the VESA mount to a stud or solid wood surface or use anchors.

Note 2: Do not use the included screws for wall mounting.

Disclaimer: ZOTAC cannot be held liable for damages resulting from an improper installation.

2. Align the ZOTAC ZBOX mounting holes to the VESA mount attachment pegs.

Attach the ZOTAC ZBOX to the VESA mount and gently press down to secure

the ZBOX to the mount.
