Rear view

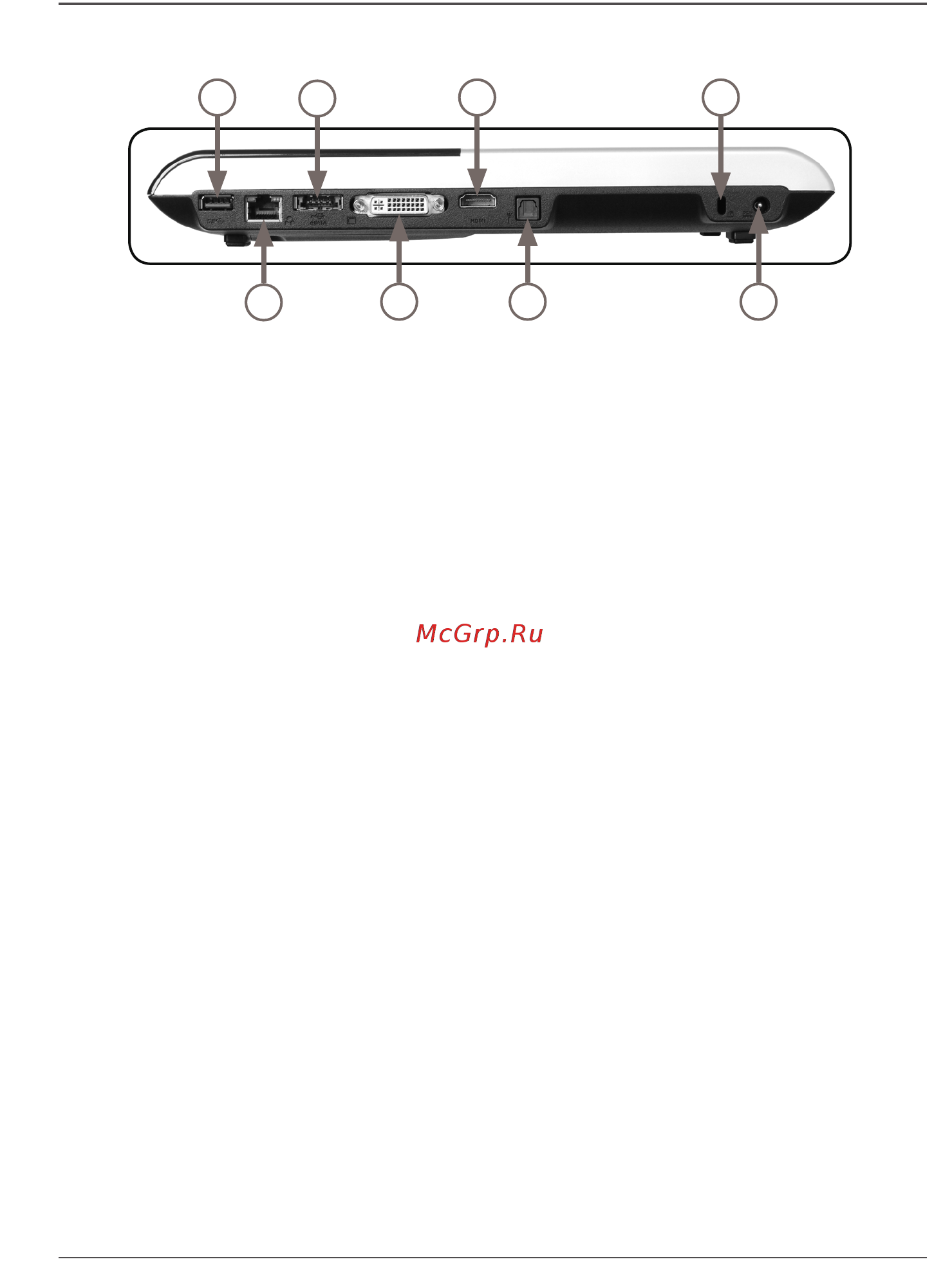

Refer to the diagram below to identify the components on this side of the system.

1. USB 3.0 port

The USB 3.0 port supports the SuperSpeed USB 3.0 devices and is backwards

compatible with USB 2.0/1.1 devices. Use this port for USB 3.0 devices for

maximum performance with USB 3.0 compatible devices

2. Ethernet port

The eight-pin RJ-45 LAN port supports standard Ethernet cable for connection to a

local area network (LAN) with speeds of 10/100/1000Mbps.

3. Combo eSATA 3.0 Gb/s / USB 2.0 port

The combo eSATA 3.0 Gb/s / USB 2.0 port is compatible with eSATA devices such

as external hard drives, Blu-ray drives, and USB 2.0 devices.

4. Dual-link DVI-I output

The dual-link DVI-I output supports digital displays with resolutions up to 2560x1600

and connection to analog VGA monitors with the included adapter (up to 2048x1536)

5. HDMI output

The HDMI (High Denition Multimedia Interface) output supports Full HD 1080p

displays such as an HDTV or monitor.

6. Optical S/PDIF output

The optical S/PDIF output enables connecting the ZOTAC ZBOX Blu-ray to digital

audio receivers and speakers for crystal clear digital audio and surround sound

from compatible soundtracks.

7. Safety lock

Connects to compatible Kensington Safety Locks.

8. Power input (DC19V)

The supplied power adapter converts AC power to DC power for use with this jack.

Power supplied through this jack supplies power to the mini-PC. To prevent damage

to the mini-PC, always use the supplied power adapter.

Note 1: The power adapter may become warm to hot when in use. Do not cover the adapter and keep it

away from your body.

Note 2: Due to the special design for easy upgrade, some connectors are placed upside down.
