ZOTAC ZBOX Blu-ray

Getting to know your ZOTAC ZBOX Blu-ray

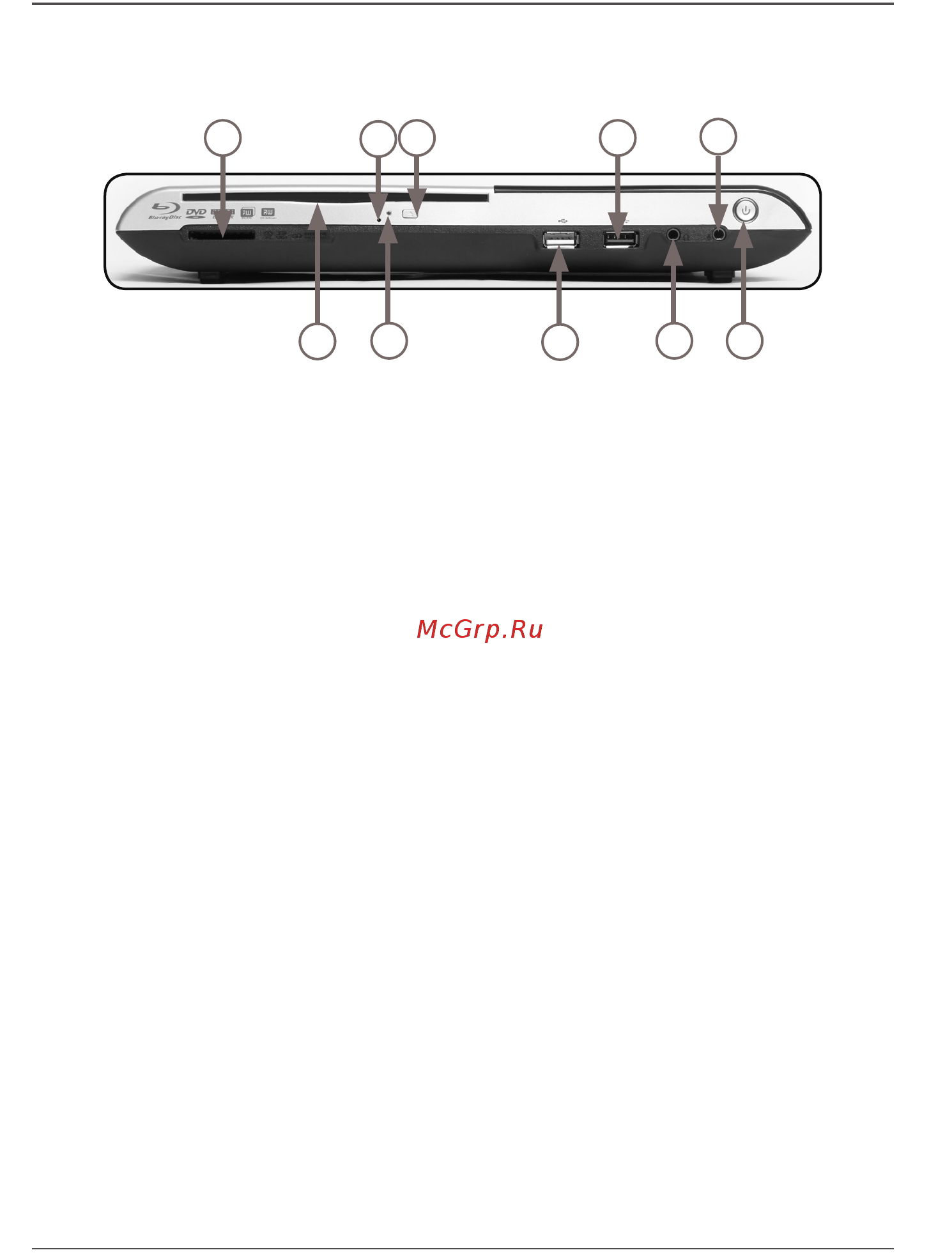

Front view

Refer to the diagram below to identify the components on this side of the system

1. 6-in-1 Memory card slot

The built-in memory card reader reads and writes MMC/SD/SDHC/MS/MS Pro/xD

cards used in devices such as digital cameras, MP3 players, mobile phones and

PDAs.

2. Optical drive

The optical drive is a slot-in type drive which supports compact discs (CD), digital

video discs (DVD) and Blu-ray discs (BD).

3. Blu-ray drive emergency eject

Users can use a pin to insert into the Blu-ray drive emergency eject pin-hole to

manually eject disc.

4. Optical drive activity indicator

The optical drive activity indicator shows when data is being transferred by the opti-

cal disk drive.

5. Optical drive eject button

The optical drive eject button ejects the disc from the optical drive.

6. USB 2.0 port

The USB (Universal Serial Bus) port is compatible with USB devices such as key-

boards, mice, cameras and hard disk drives.

7. USB 3.0 port

The USB 3.0 port supports the SuperSpeed USB 3.0 devices and is backwards

compatible with USB 2.0/1.1 devices. Use this port for USB 3.0 devices for

maximum performance with USB 3.0 compatible devices.

8. Headphone/Audio output jack

The stereo headphone jack (3.5mm) is used to connect the system’s audio out

signal to analog headphones or amplied speakers.

9. Microphone jack

The microphone jack is designed to connect a microphone for video conferencing,

voice narrations or simple audio recordings.

10. Power switch

The power switch turns the mini-PC ON and OFF.
