GETTING TO KNOW YOUR ROUTER

A) Modem (WAN) Connector

Connect your modem to this

port using an Ethernet cable.

B) Wired (LAN) Connectors

Connect computers and other

wired network devices to these

ports using Ethernet cables.

C) USB Port

USB printers, disks, and other

USB devices plugged into this

port will be shared on your

network. Each USB port has a

light that indicates its status.

Off: No USB device is

connected or the attached

USB device is not in use.

Blinking: Please wait to

unplug the device until

the light turns off.

On: The USB device is

connected and being

shared on your network.

D) Reset Button

This button is used to restart

your Router in rare cases when it

functions incorrectly. Resetting

the Router will preserve your

settings. This button may also

be used to restore the factory

default settings. Please see

the Troubleshooting section

for more information.

E) Power Connector

Connect the included power

supply to this jack.

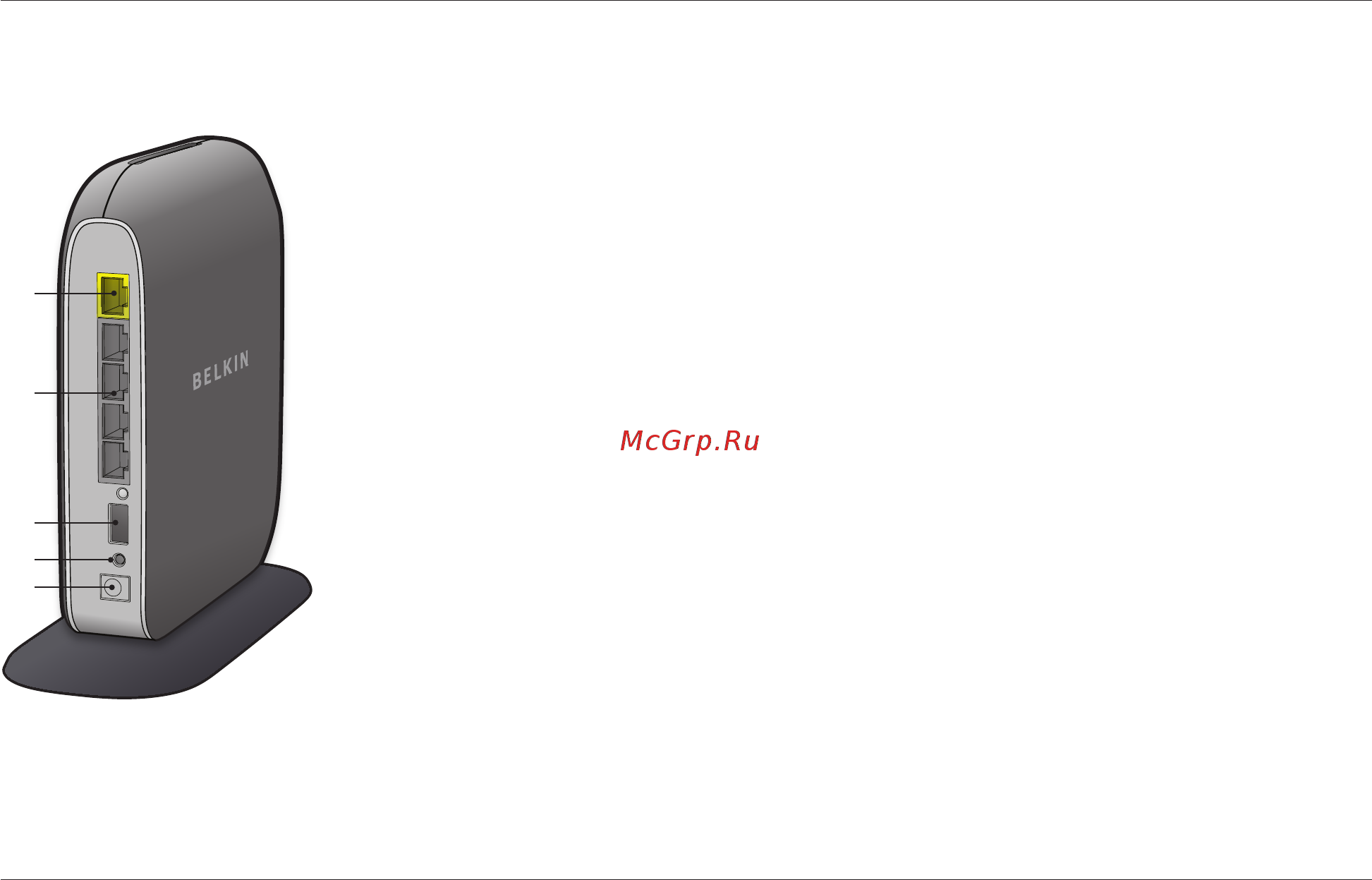

Back Panel

(a)

(b)

(c)

(d)

(e)
