SWH
2

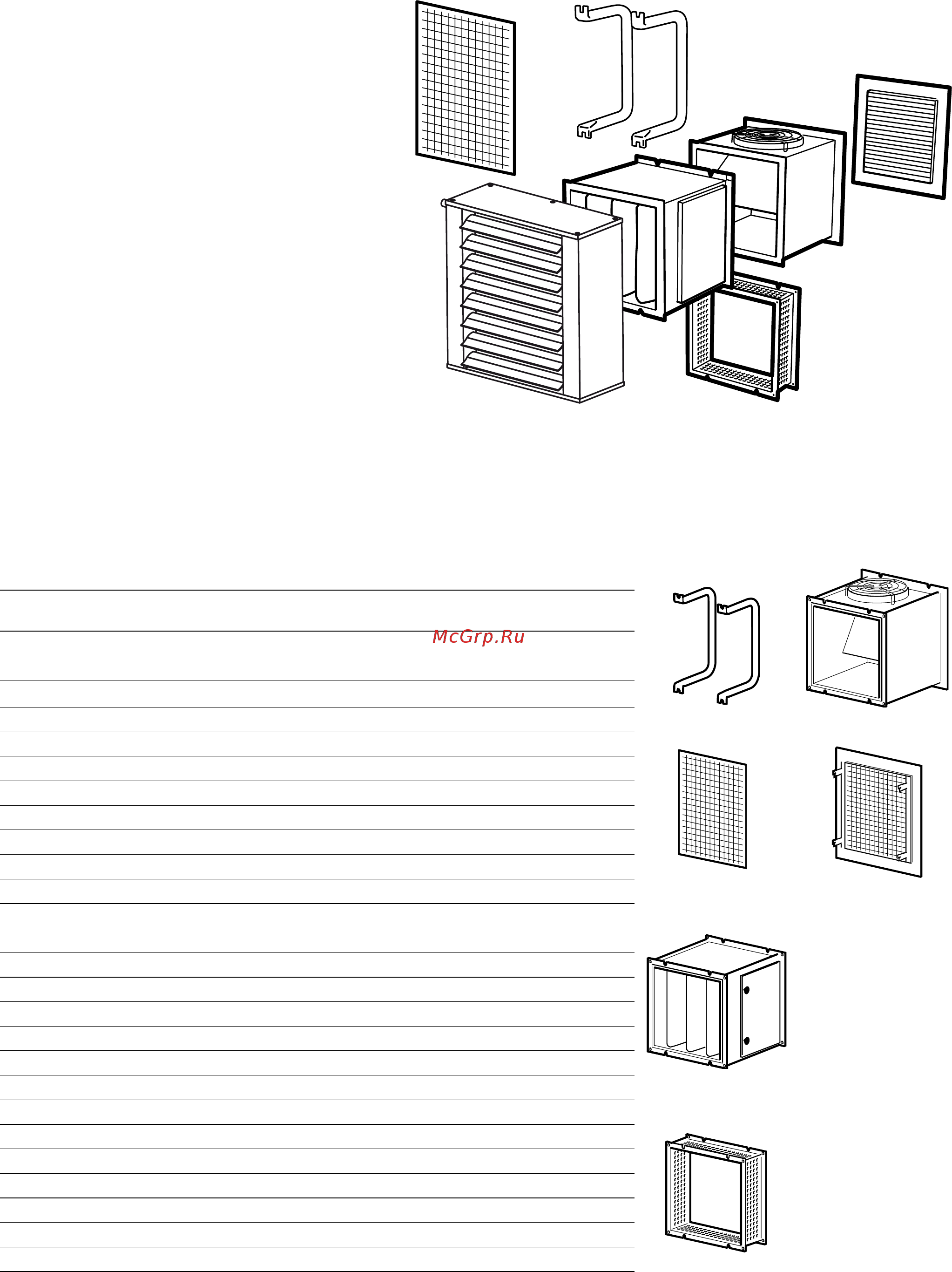

Fan heater SWH
1 Fan heater SWH
2 Mounting brackets SWB
3 Basic filter SWFTN
4 Filter section,
deep-pleated bagfilter EU3
SWF
5 Return air intake SWD
6 Mixing cabinet with damper
SWBS
7 Outer wall grill SWY
8 Extra air director, adjustable louvres SWLR
1 Fläktluftvärmare SWH
2 Monteringskonsoler SWB
3 Trådnätsfilter SWFTN
4 Filterskåp, djupveckad
filterkasset EU3 SWF
5 Distansdel för filterskåp SWD
6 Blandningsskåp med spjäll SWBS
7 Ytterväggsgaller SWY
8 Extra luftriktare, ställbara lameller SWLR
1
2
3
4
5
6
7
SWB
SWF
SWD
SWBS
SWFTN
SWY
Accessories
Type Description RSK-nr NRF-nr
SWB0
Mounting brackets SWH02 672 49 10 85 023 14
SWB1
Mounting brackets SWH12 672 49 11 85 023 15
SWB2
Mounting brackets SWH22 672 49 12 85 023 16
SWB3
Mounting brackets SWH32/SWH33 672 49 13 85 023 17
SWFTN02
Basic filter SWH02 673 03 95
SWFTN1
Basic filter SWH12 673 03 96
SWFTN2
Basic filter SWH22 673 03 97
SWFTN3
Basic filter SWH32/SWH33 673 03 98
SWF1
Filter section SWH12 672 70 14
SWF2
Filter section SWH22 672 70 15
SWF3
Filter section SWH32/SWH33 672 70 16
SWEF1
Extra filter cassette EU3 SWH12 672 70 17
SWEF2
Extra filter cassette EU3 SWH22 672 70 18
SWEF3
Extra filter cassette EU3 SWH32/SWH33 672 70 19
SWD1
Return air intake SWH12 672 70 20
SWD2
Return air intake SWH22 672 70 21
SWD3
Return air intake SWH32/SWH33 672 70 22
SWBS1
Mixing cabinet SWH12 672 70 08 85 021 32
SWBS2
Mixing cabinet SWH22 672 70 09 85 021 33
SWBS3
Mixing cabinet SWH32/SWH33 672 70 10 85 021 34
SWY1
Outer wall grille SWH12 672 70 11 85 021 35
SWY2
Outer wall grille SWH22 672 70 12 85 021 36
SWY3
Outer wall grille SWH32/SWH33 672 70 13 85 021 37
SWLR1
Extra air director sideways SWH12 672 70 26
SWLR2
Extra air director sideways SWH22 672 70 27
SWLR3
Extra air director sideways SWH32/SWH33 672 70 28
